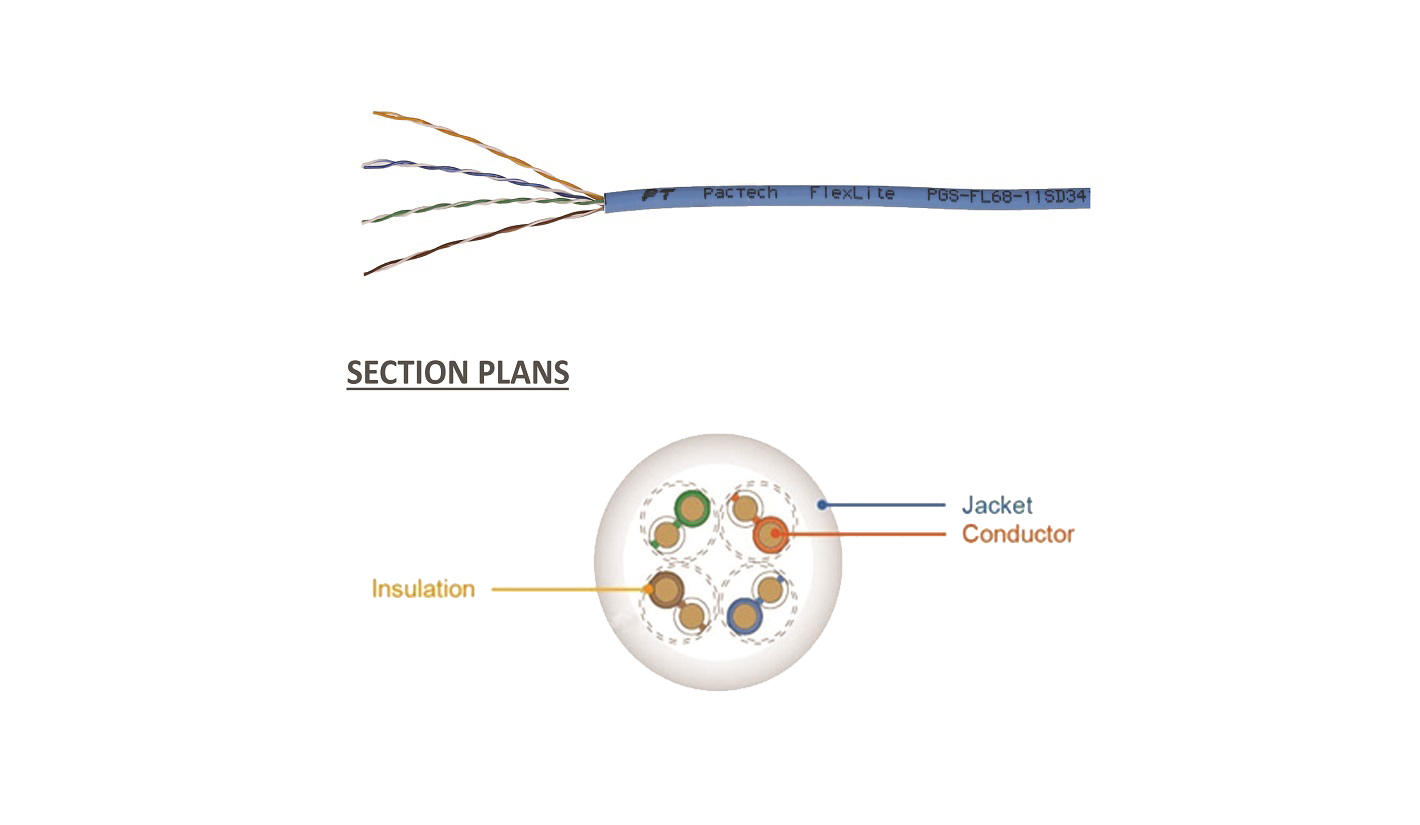

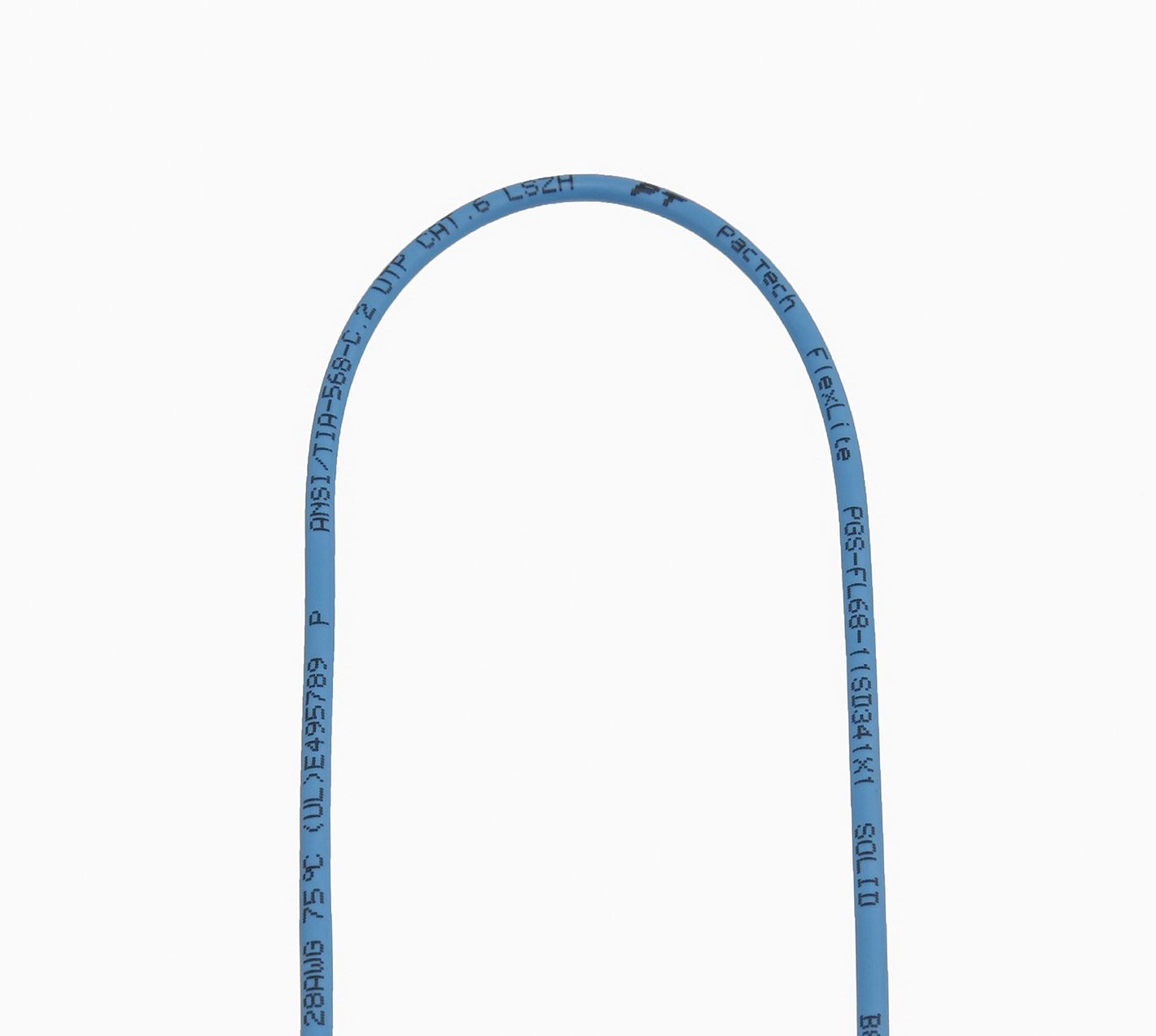

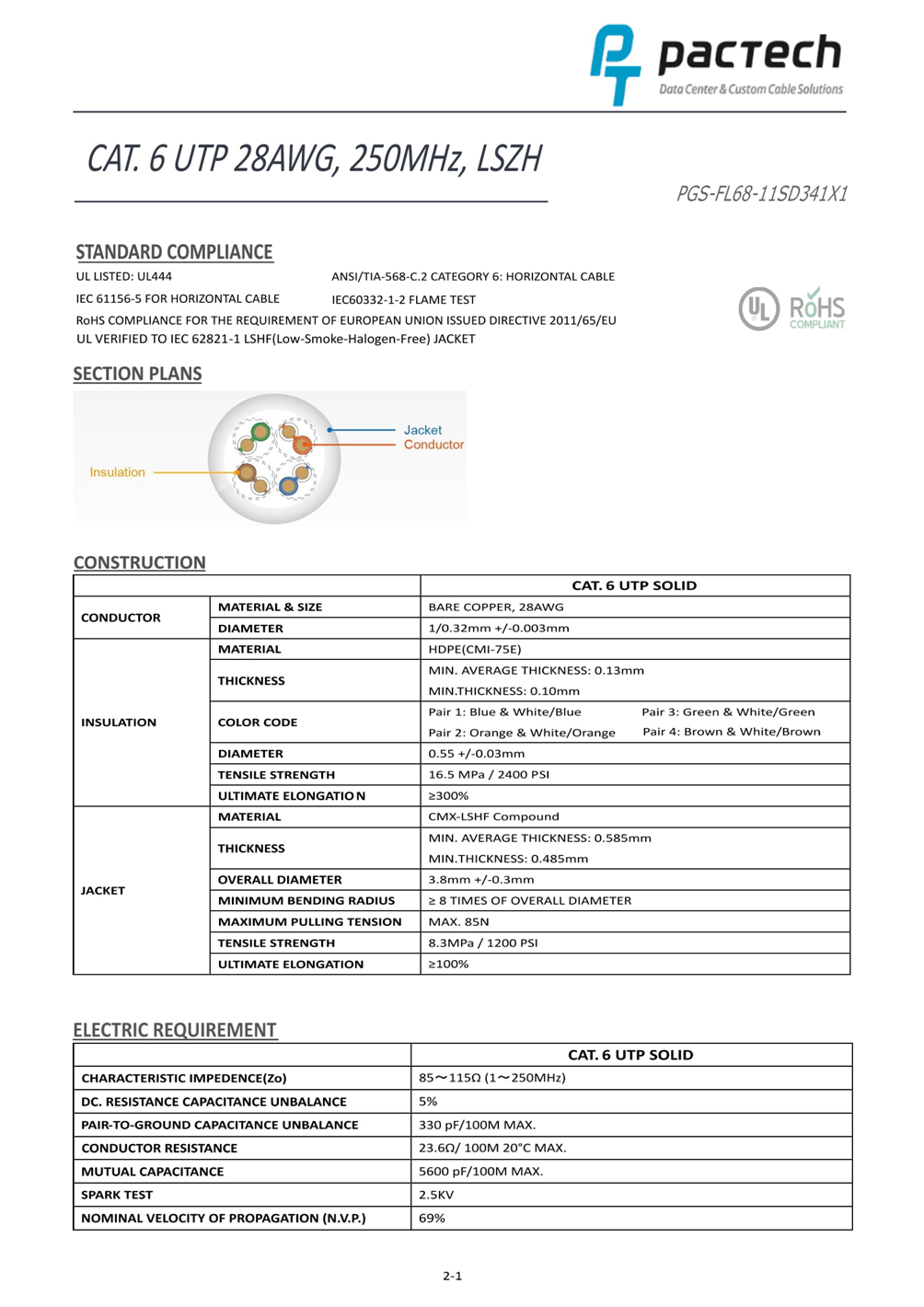

Description
-
-
- 250MHz, Base 1000-T
- UL Listed: UL444
- ANSI/TIA-568-C.2
- IEC60332-1-2 Flame Test
- RoHS Compliance for the requirement of the European Union Issued Directive 2011/65/EU
- UL Verified to IEC 62821-1 LSHF(Low-Smoke-Halogen-Free) Jacket
- Please contact us for a quote
Electric Requirement
• Characteristic Impedance (Zo): 85 ~ 115Ω (1 ~ 250MHz)
• DC. Resistance capacitance unbalance: 5%
• Pair-to-ground capacitance unbalance: 330 pF/100M MAX.
• Conductor resistance: 22.6Ω/ 100M 20°C MAX.
• Spark Test: 2.5KV
• Nominal velocity of propagation (N.V.P.): 69%

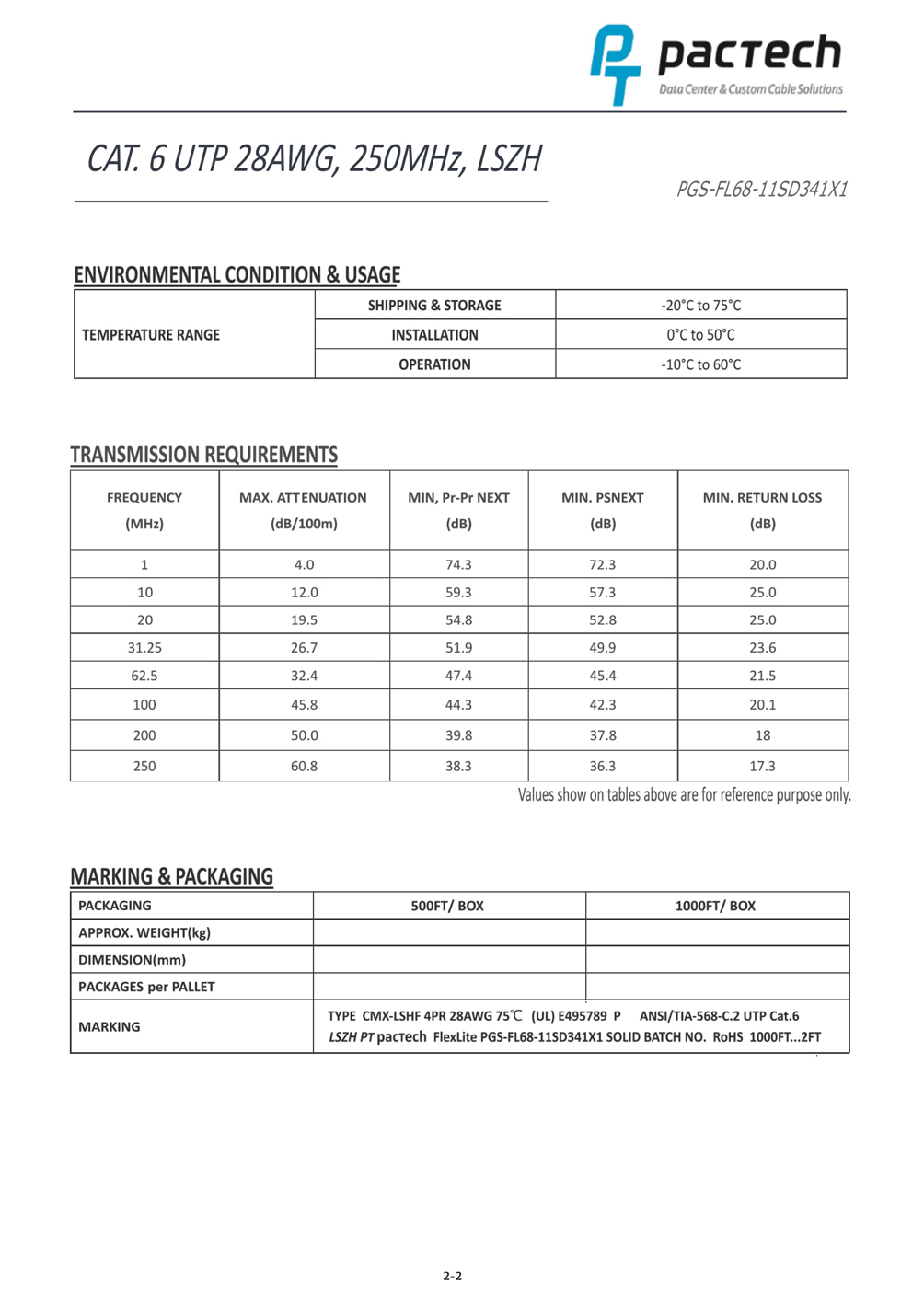

• Installation Temperature: 0°C to 50°C
• Operation Temperature: -10°C to 60°C
