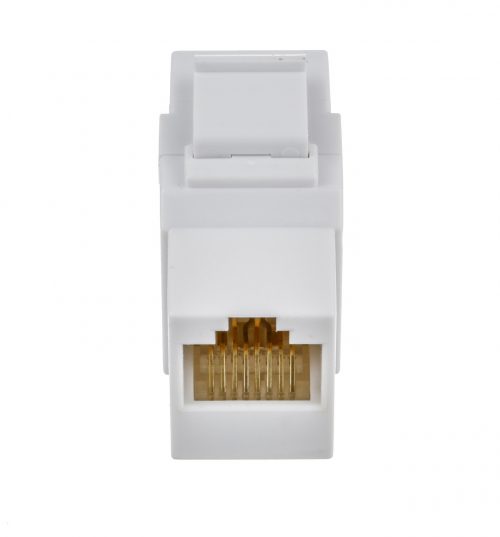

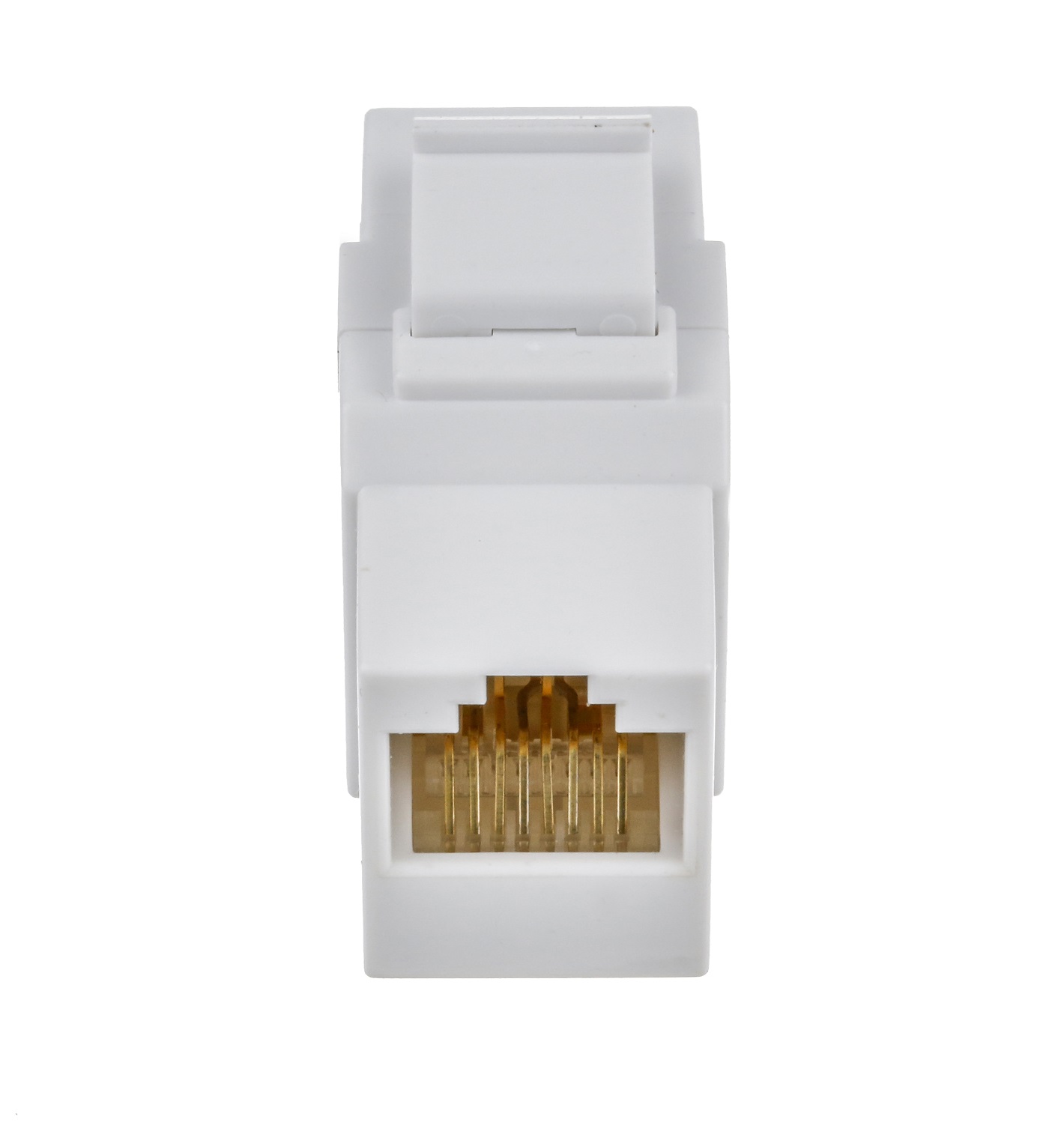

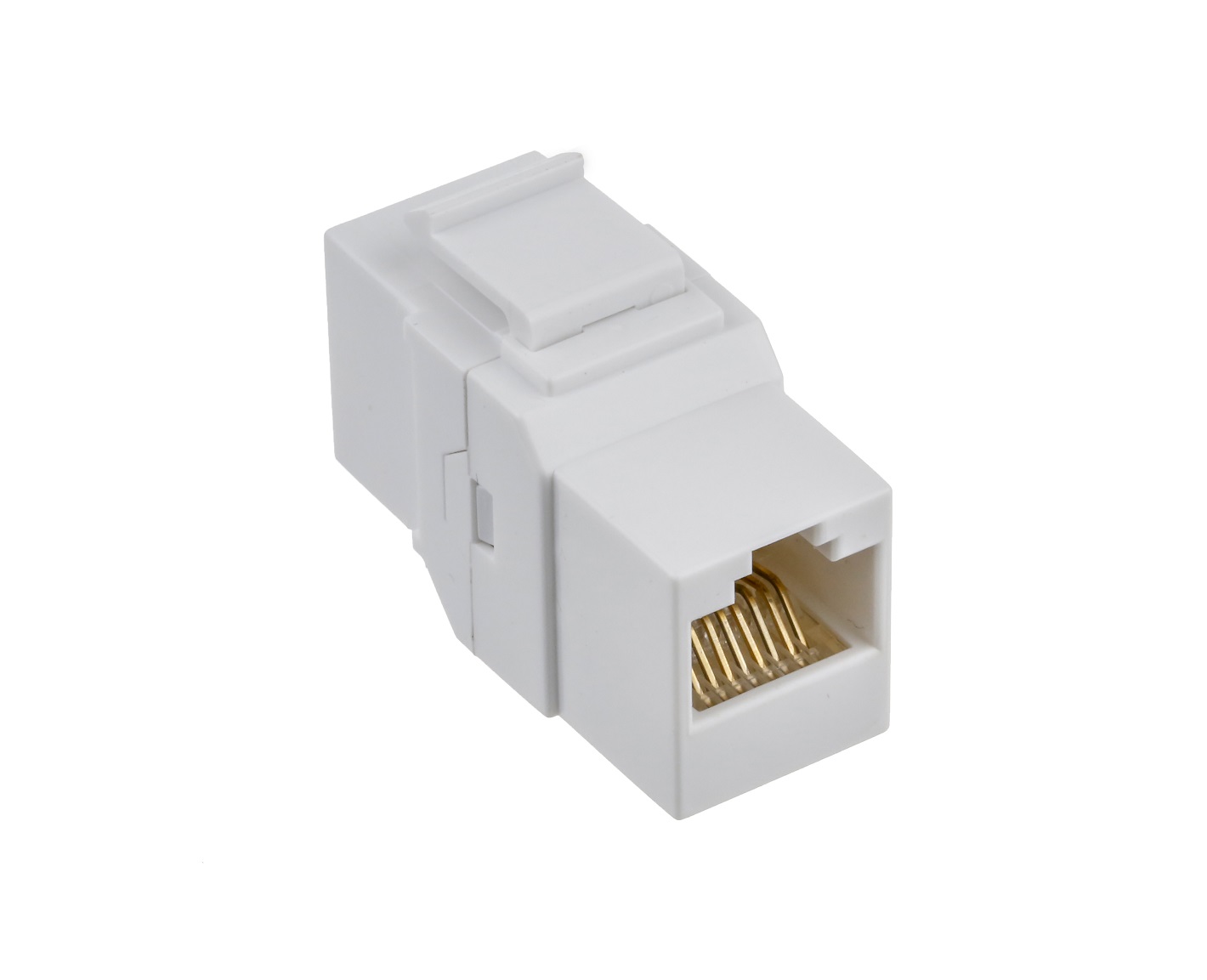

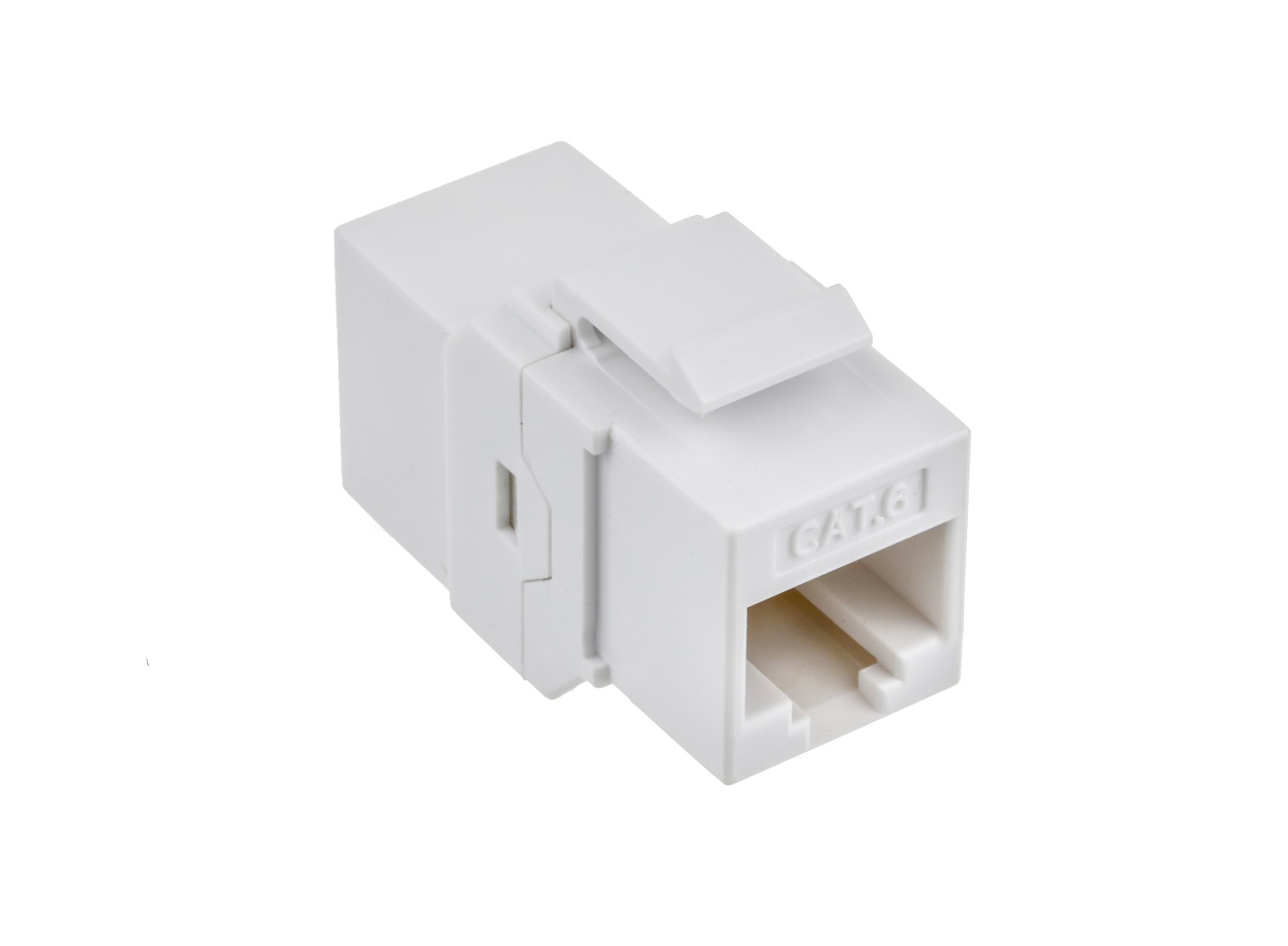

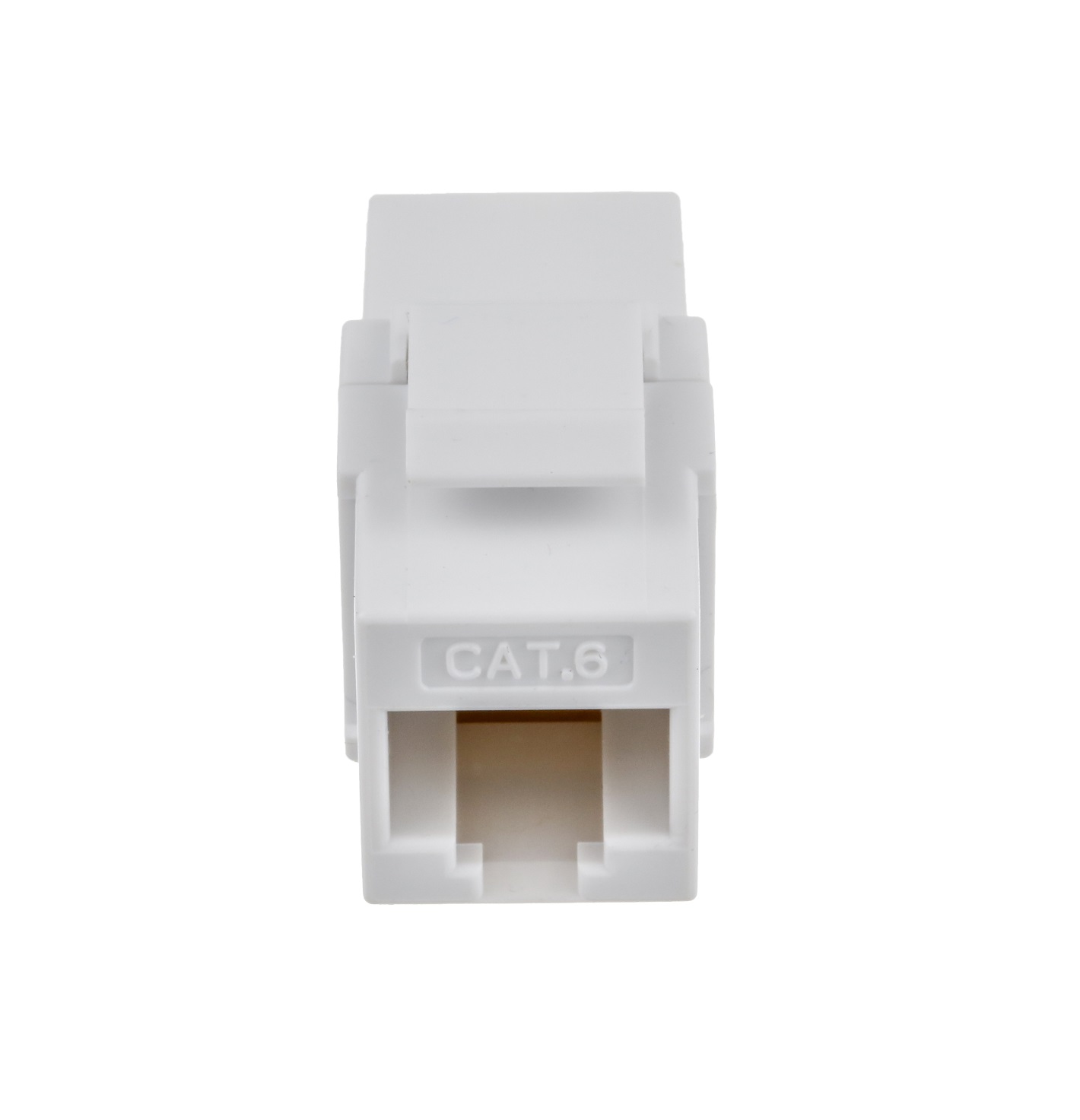

CAT6 UTP Inline Coupler Keystone Type, White Color

  • Compatible with ANSI/TIA/EIA 568 B.2-1 standard
  • Compatible for 24-port applications in 1U
  • Easily snap in and out of patch panel, and surface boxes or other application
  • Easy Installation
  • White color, 180 Degree
  • 10pcs per bag
  • Please contact us for a quote
SKU: PGS-06-CC6U1-18WL2W3 Categories: ,

Description

Performance

  • Insertion Force: 900 gms for 8 contacts
  • Retention Strength: 7.7 kg between Jack and Plug
  • Operating Temperature: -40°C to 80°C
  • Durability for Jack: 750 cycles Plug-Jack mating & unmating test, insertion cycles at 20 cycles/minute max. Contact resistance test per 100 cycles
  • Durability for IDC: Max. 200 punching times
  • Cat.6 performance is in compliance with ANSI/TIA/EIA 568 B.2-1 standard
  • Please contact us for a quote
