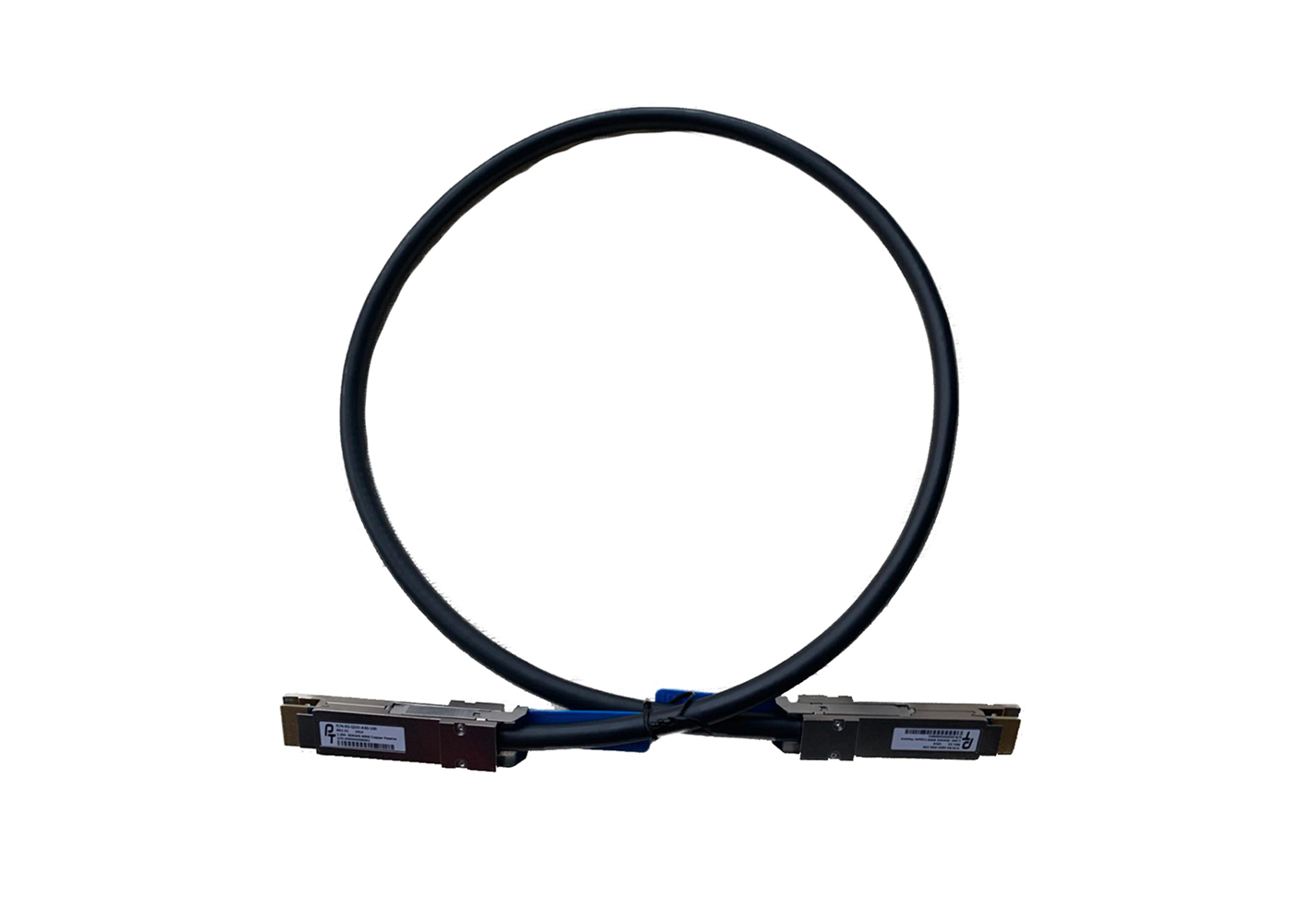

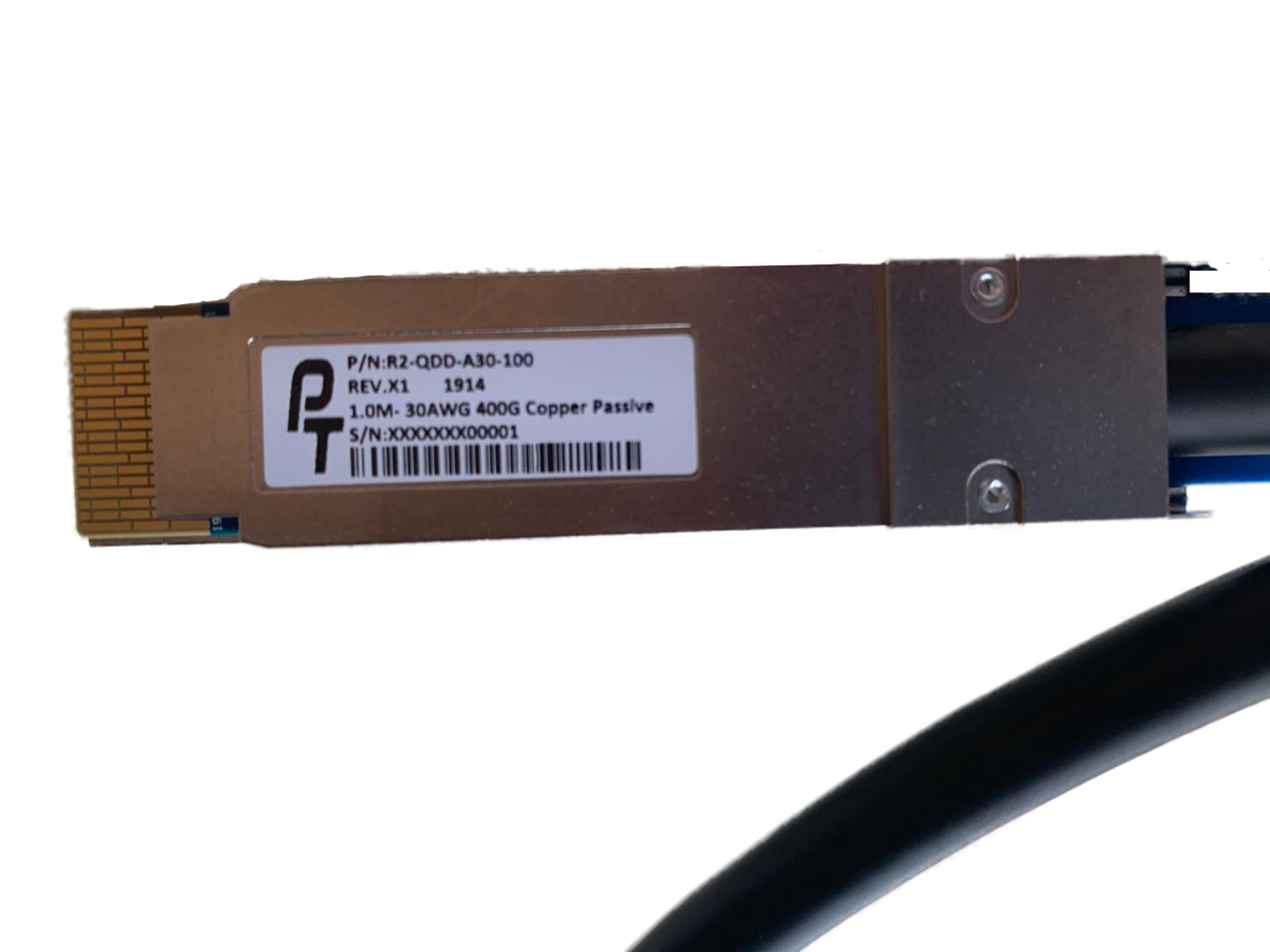

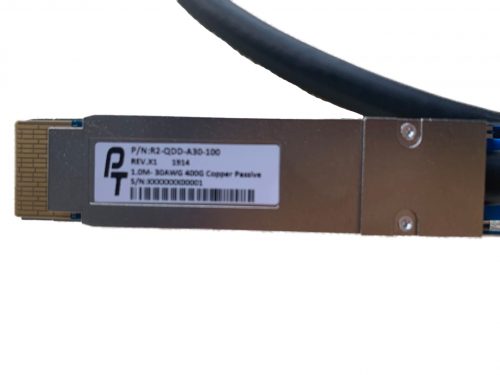

NEW Direct Attach Copper (DAC) Cable – Rapide II™ 400G QSFP DD Passive Twinax Cable

  • Applications – 200G NRZ/400G PAM4 Ethernet
  • Standard Compliance – IEEE 802.3cd, QSFP-DD MSA
  • Length – 0.5m/1.0m/1.5m/2.0m/2.5m/3.0m
  • Cable Length 1 meter or shorter: using 16 pairs (8 lanes each 50G) in ONE cable structure

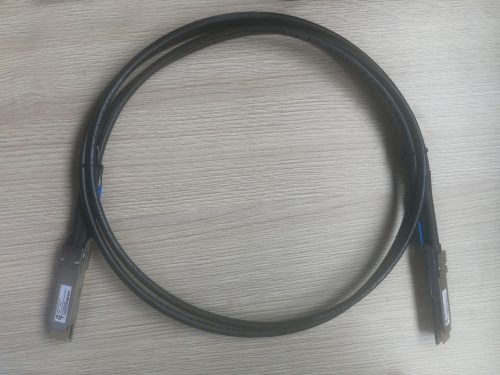

  • Cable Length longer than 1 meter: using 2x parallel cable structure
  • Based on Bestronics low temp soldering and unified design
  • Custom lengths in 0.25m increments & quantity discounts available
  • Corporate colors and Custom lengths with lead time as short as 3+ weeks
  • Please contact us for a quote

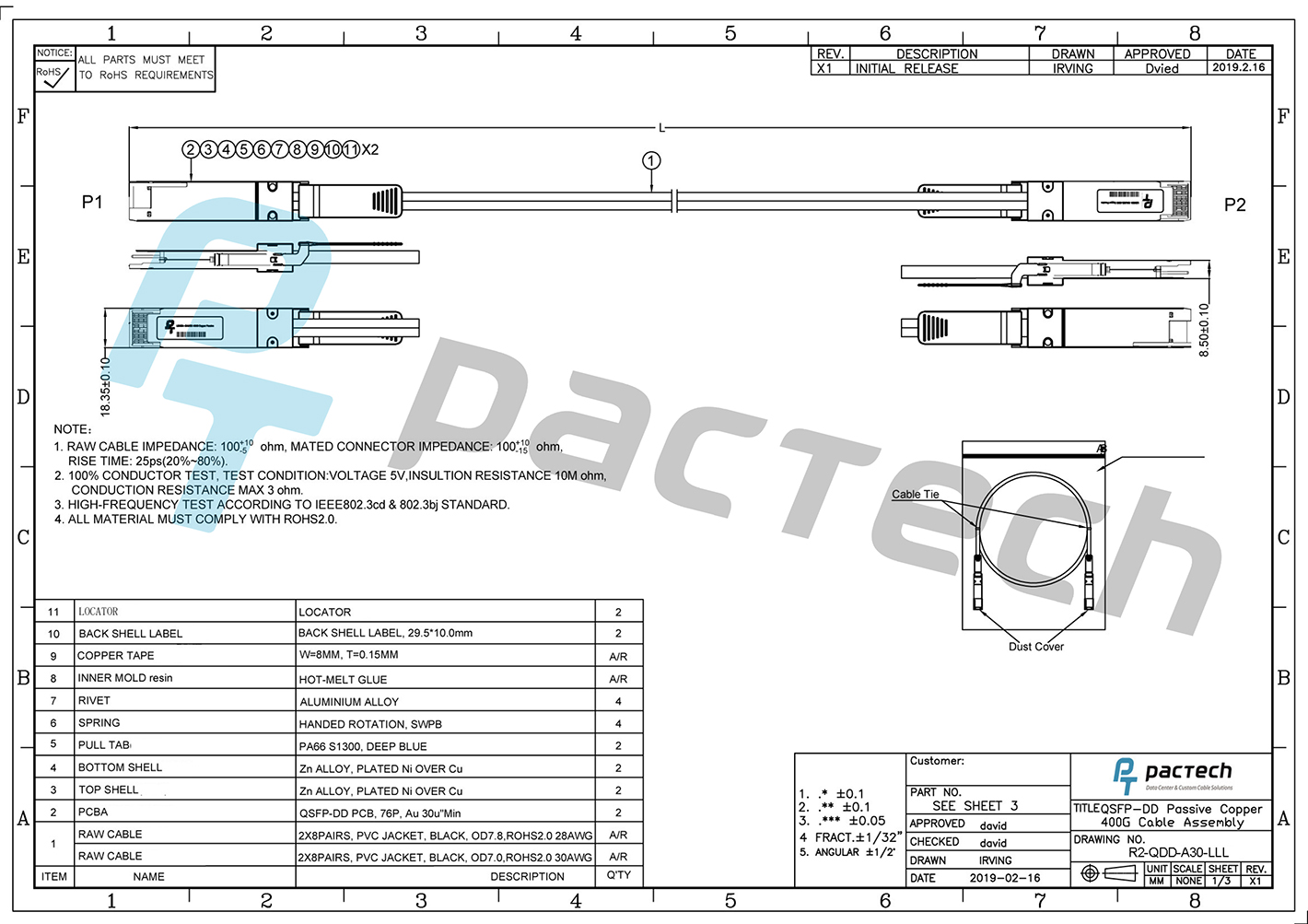

  • Please see drawing for Part Numbers
SKU: R2-QDD-AXX-LLL Category:

Description

Bestronics proudly offers our NEW 400G QSFP Double Density Rapide II™ cables  with processing and manufacturing innovation:

  • QSFP-DD is compliant with QSFP-DD Rev 2.2 specification, the cable length from 0.5 meter up to 3 meter
  • Cable Length 1 meter or shorter: using 16 pairs (8 lanes each 50G) in ONE cable structure
  • Cable Length longer than 1 meter, cable jacket OD Twinax cable jacket OD size range from14mm to 15.6mm of two cables sit shoulder by shoulder, conductor ranging from 26AWG to 30AWG.



  • Processing: low-temperature soldering and termination
    • Minimize the insulation shrinking & damage risks
    • Unified processing for multiple product lines

We offer custom lengths and custom colors with short leadtime at 3+ weeks to help customers in fast turn around solution.

All of our DAC cables are individually tested, and meet or exceed industry standards to ensure high performance, cost-effectiveness, consistency, and quality assemblies for today’s direct attach equipment connections.

Please contact us for a quote.
