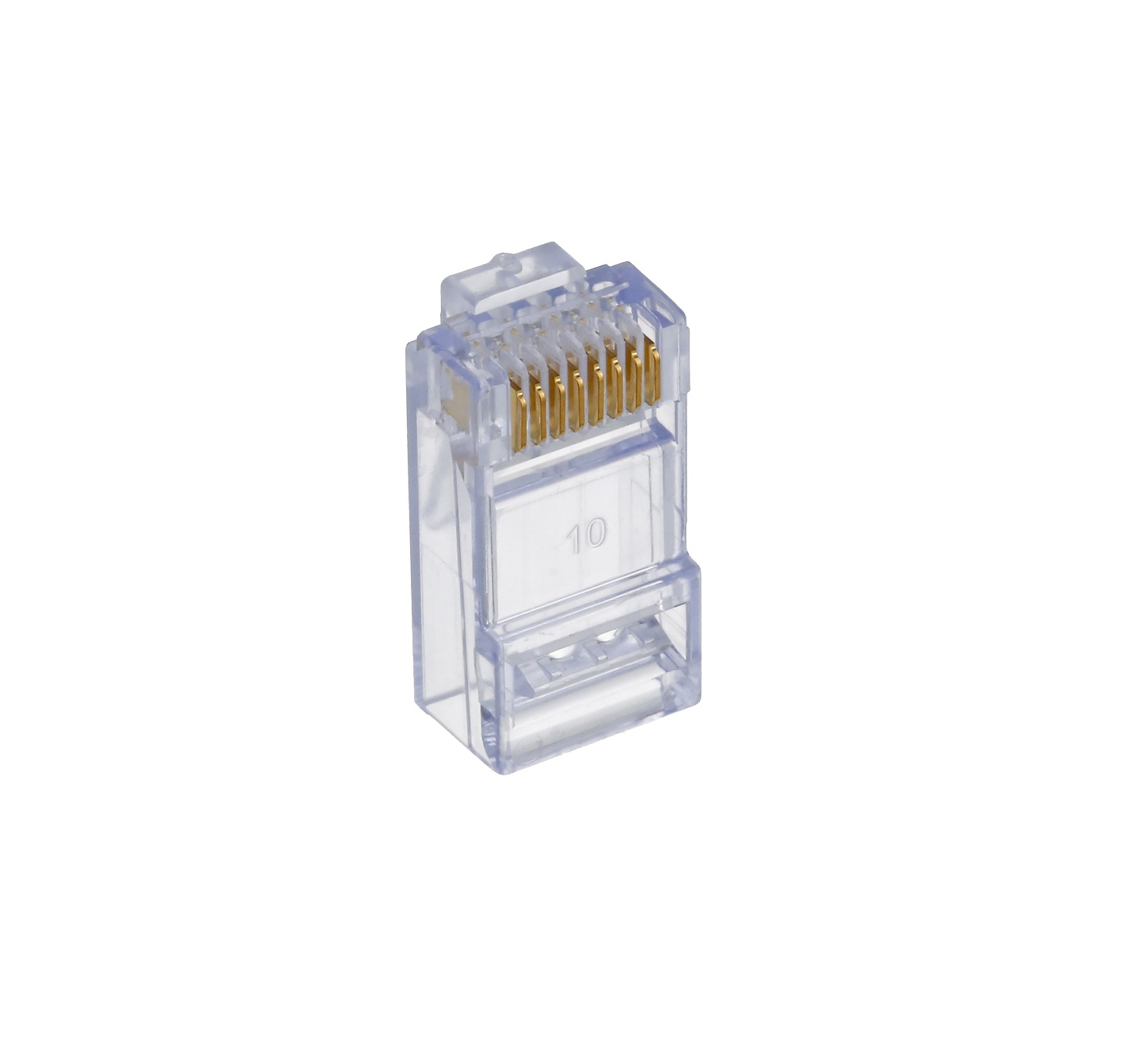

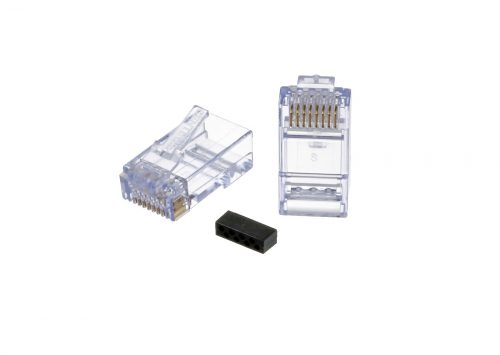

Sentinel Cat6 UTP RJ45 Plug for 24AWG Cable

  • Eight conductor modular plug
  • For conductors with O.D. of .042
  • Uses .012 contact
  • Product requires conductive load bar
  • For Cat6 patch cord applications
  • For solid or stranded wire applications
  • Please contact us for a quote
SKU: PN-111-08080054L34 Categories: ,

Description

Performance:

  • Meets or Exceeds Category 6 ANSI/EIA 568-C.2
  • Performance Tuned to cables meet Category 6 specification

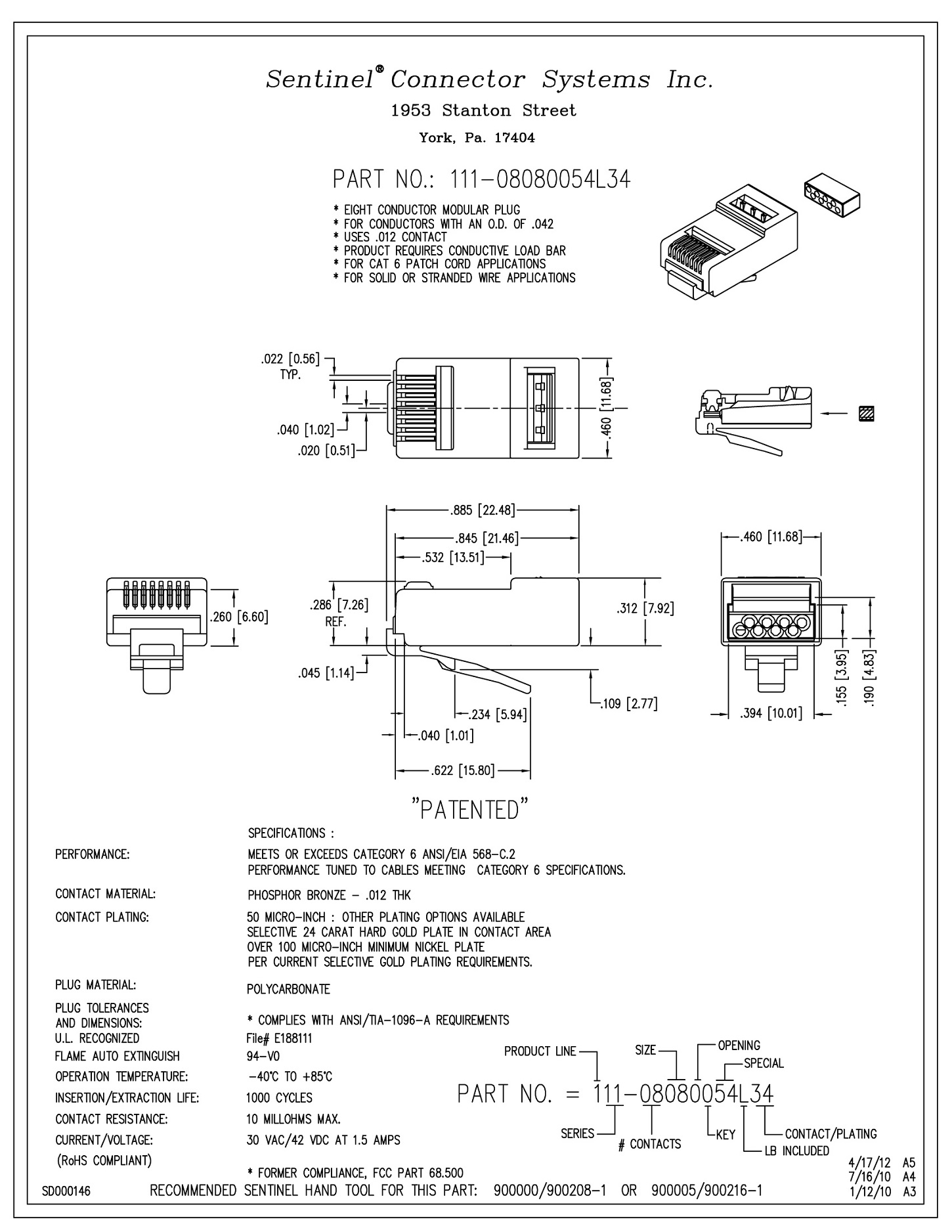

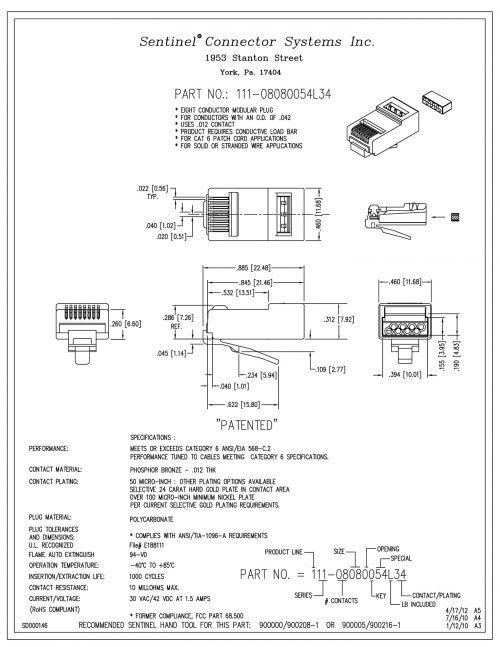

Plug Tolerances and Dimensions: Complies with ANSI/TIA-1096-A requirements

U.L. Recognized: File# E188111

Flame Auto Extinguish: 94-V0

Operation Temperatire: -40°C to 85°C

Insertion/Extraction Life: 1000 Cycles

Contact Resistance: 10 Millions Max.

Current/Voltage: 30 VAC/42 VDC AT 1.5 AMPS

RoHS Compliant

Please contact us for a quote
