Description

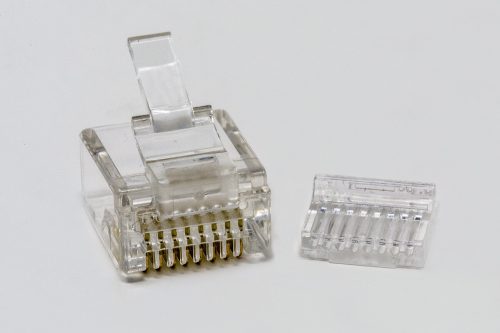

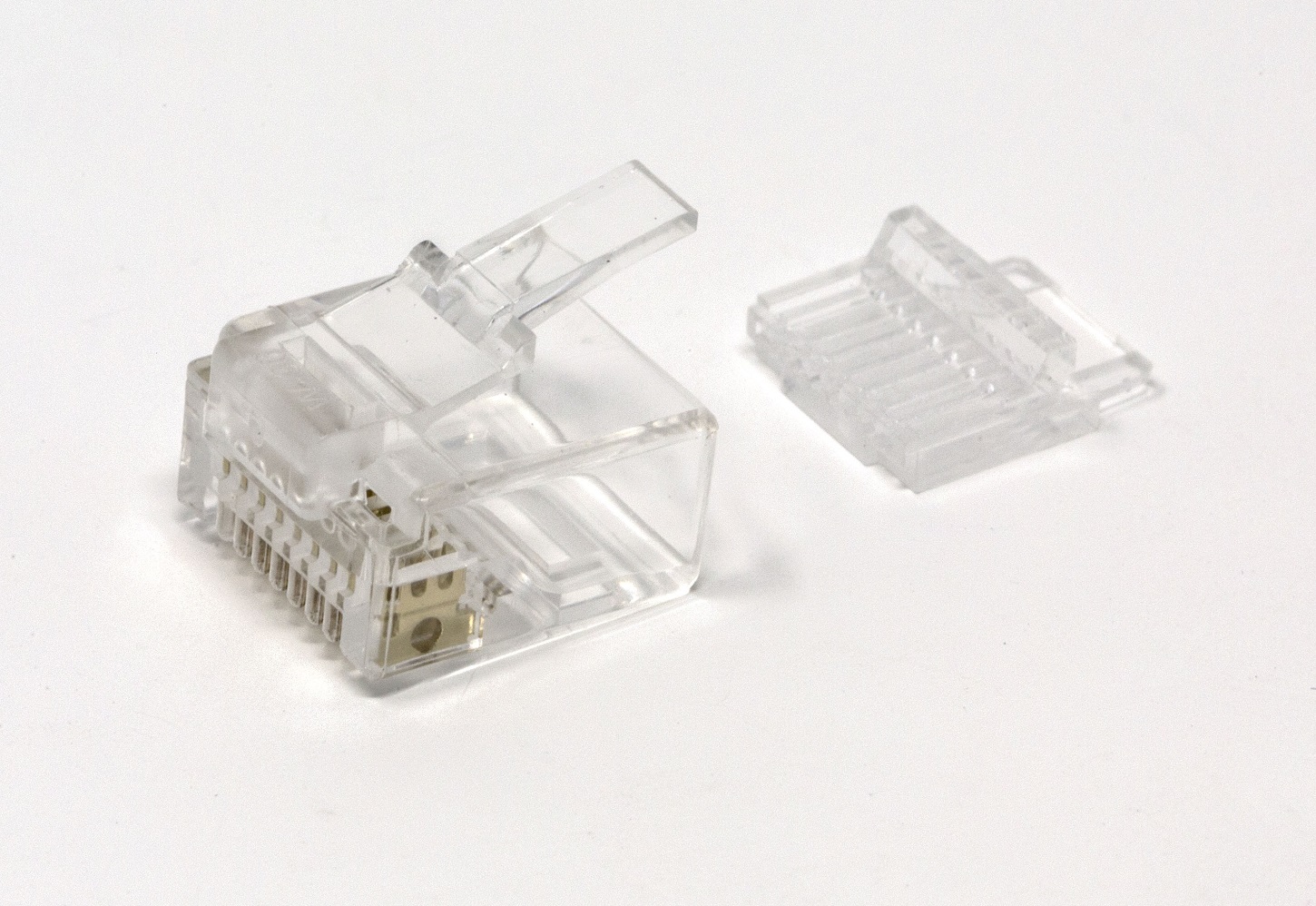

- Cat6 UTP RJ45 Mini Plug for 28AWG round cable – FlexMini6 & 6A
- For both Stranded and Solid Wire
- With Insert 0.63mm
- Gold Plated 50U”
- 3 Prongs
- 100pcs per bag
- Please contact us for a quote
Specifications
Electrical:
UL Applications: 250 Volts AC max., AT 2 AMPS.
Dielectric withstanding Voltage: 1000 Volts AC.
Withstand Voltage Time: 60s.
Insulation Resistance: 500 M.Ω.
Termination: Resistance 20m Ω Max After Environmental Testing
Mechanical:
Cable-To-Plug Tensile Strength: 8.8 Pound Min.
Durability: 1200 Mating Cycles
