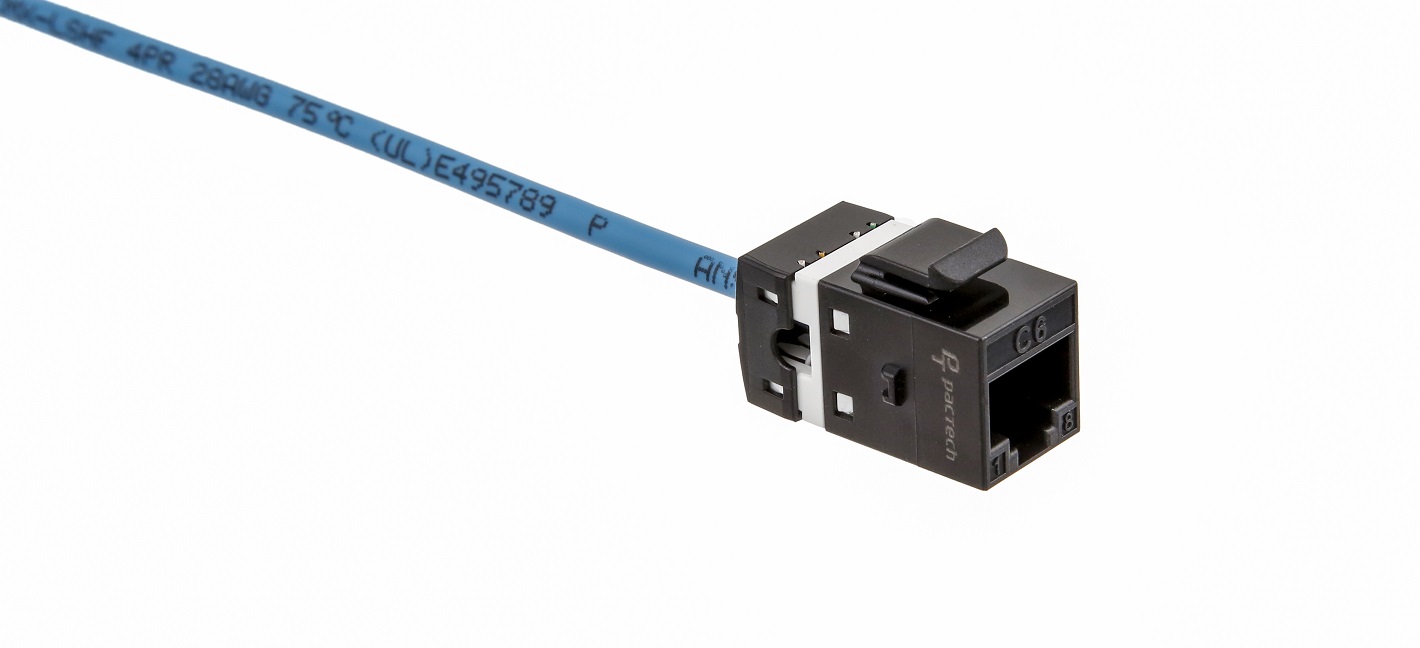

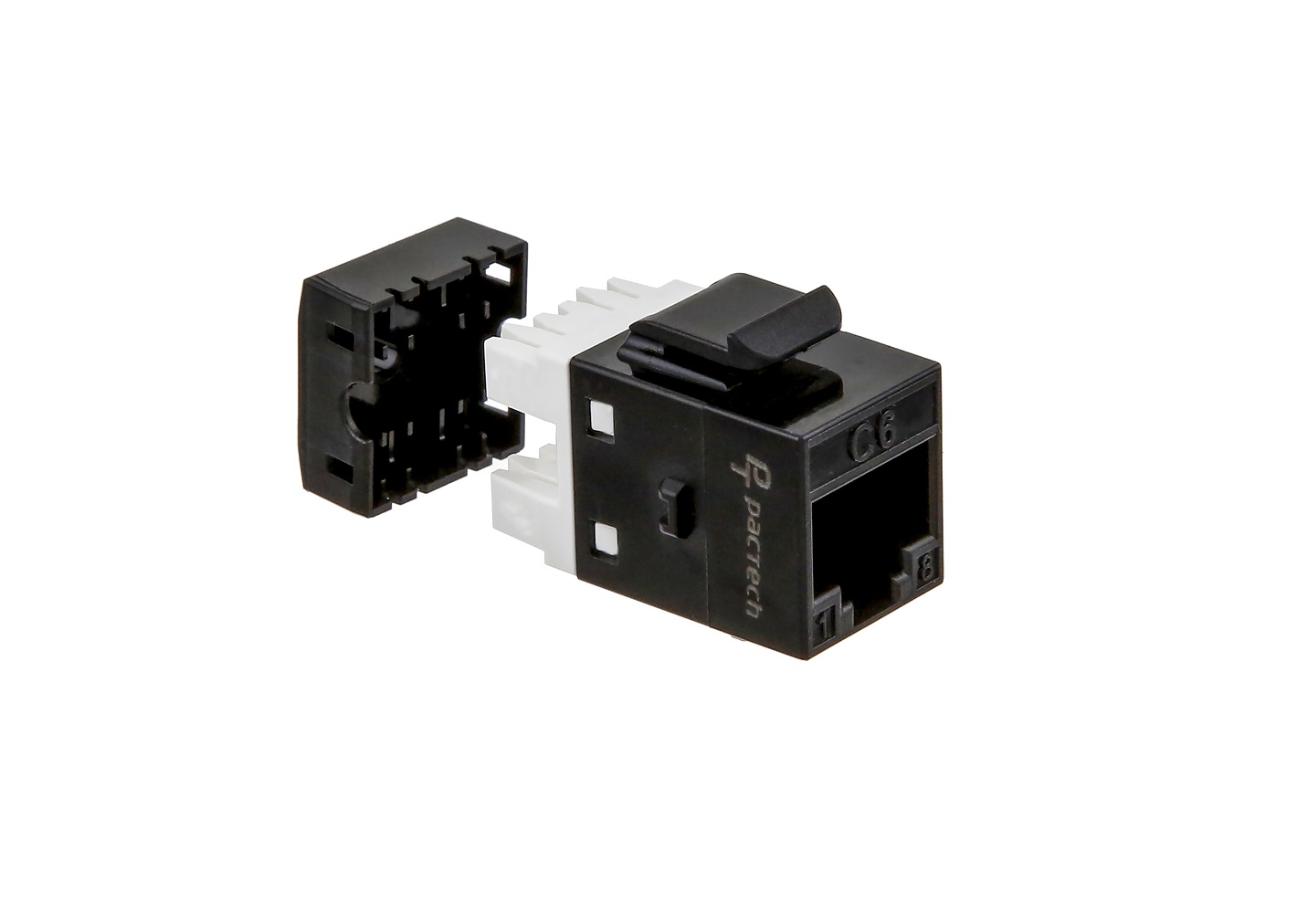

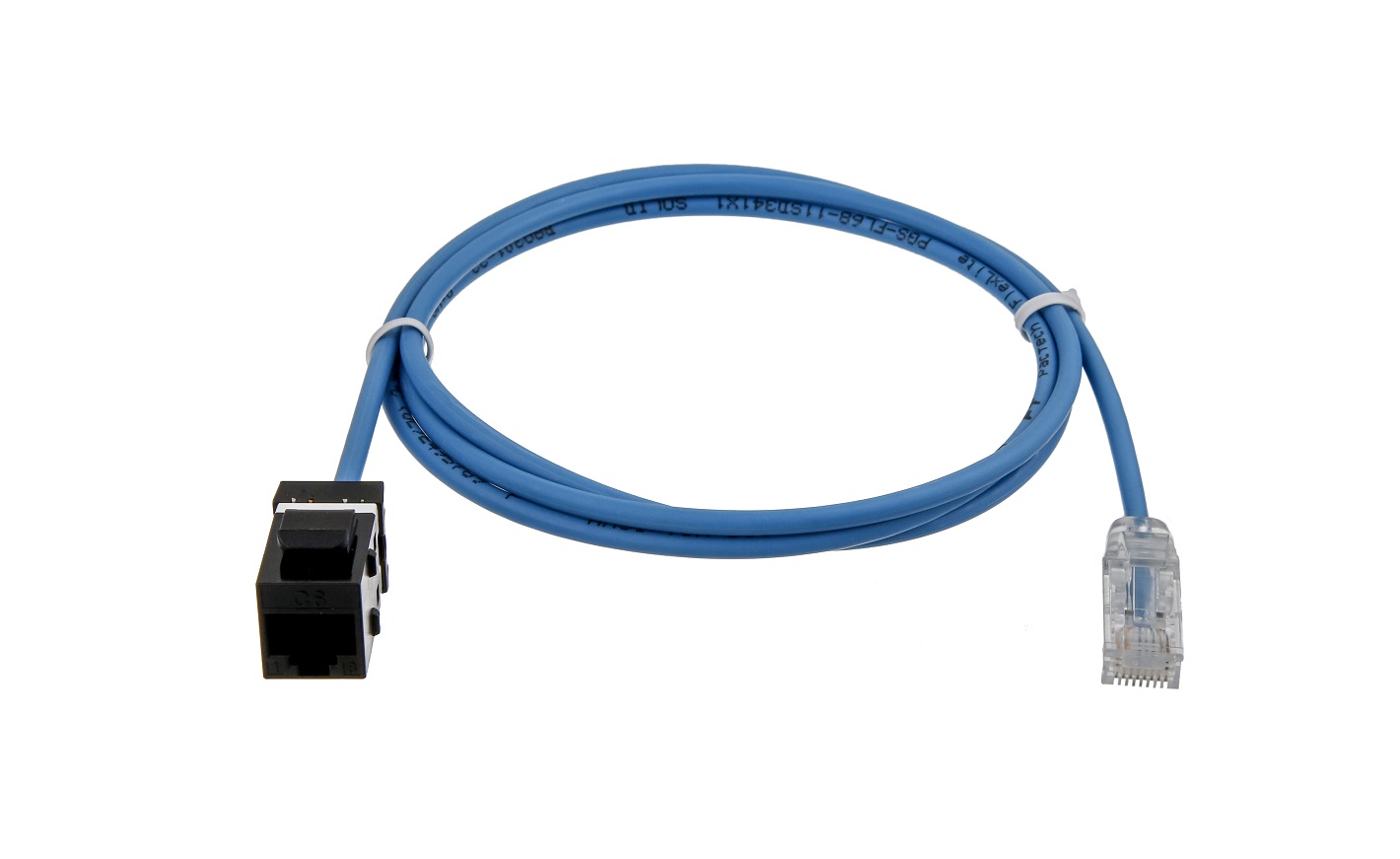

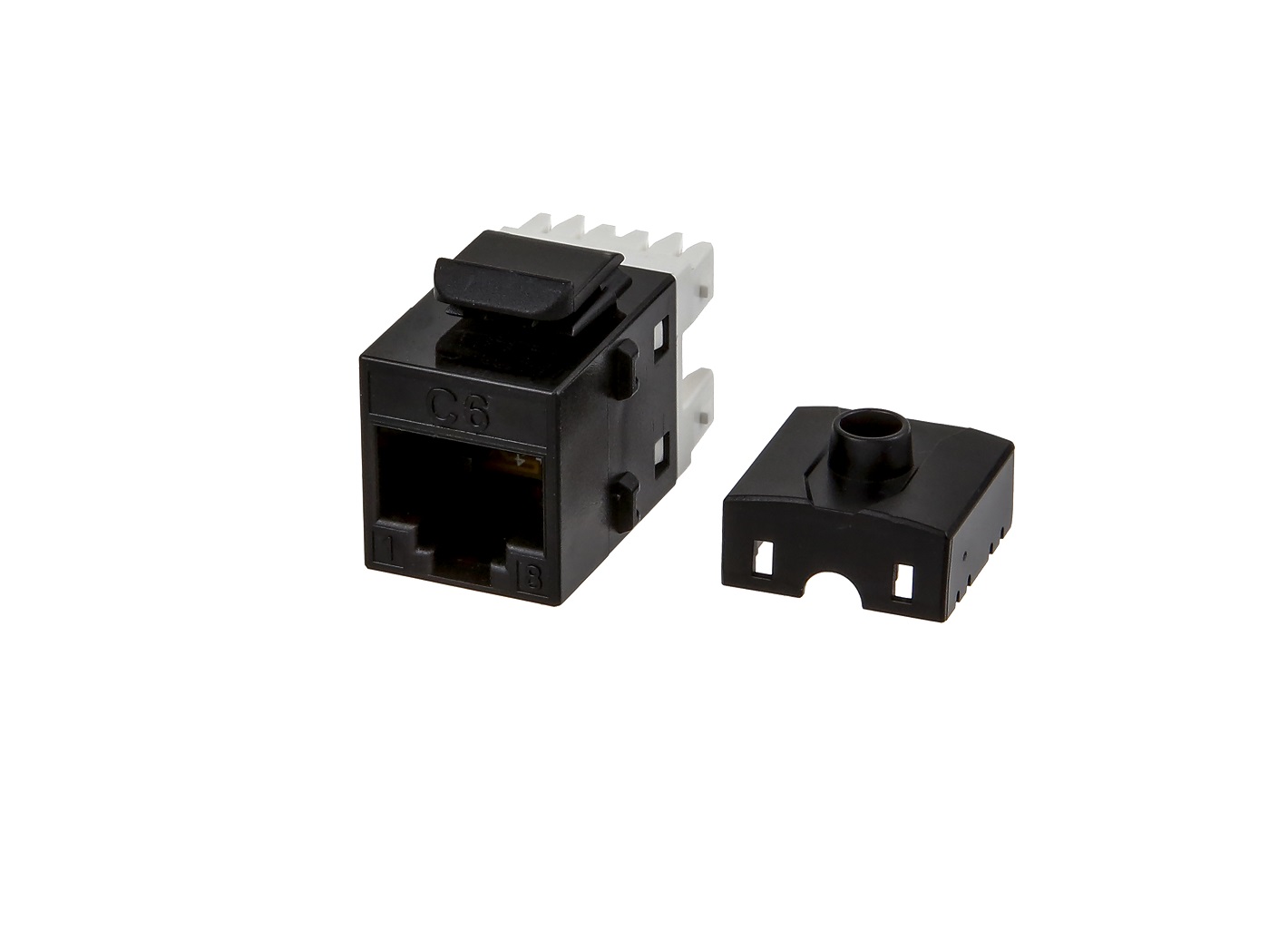

CAT6 UTP 28AWG KeyStone Jack

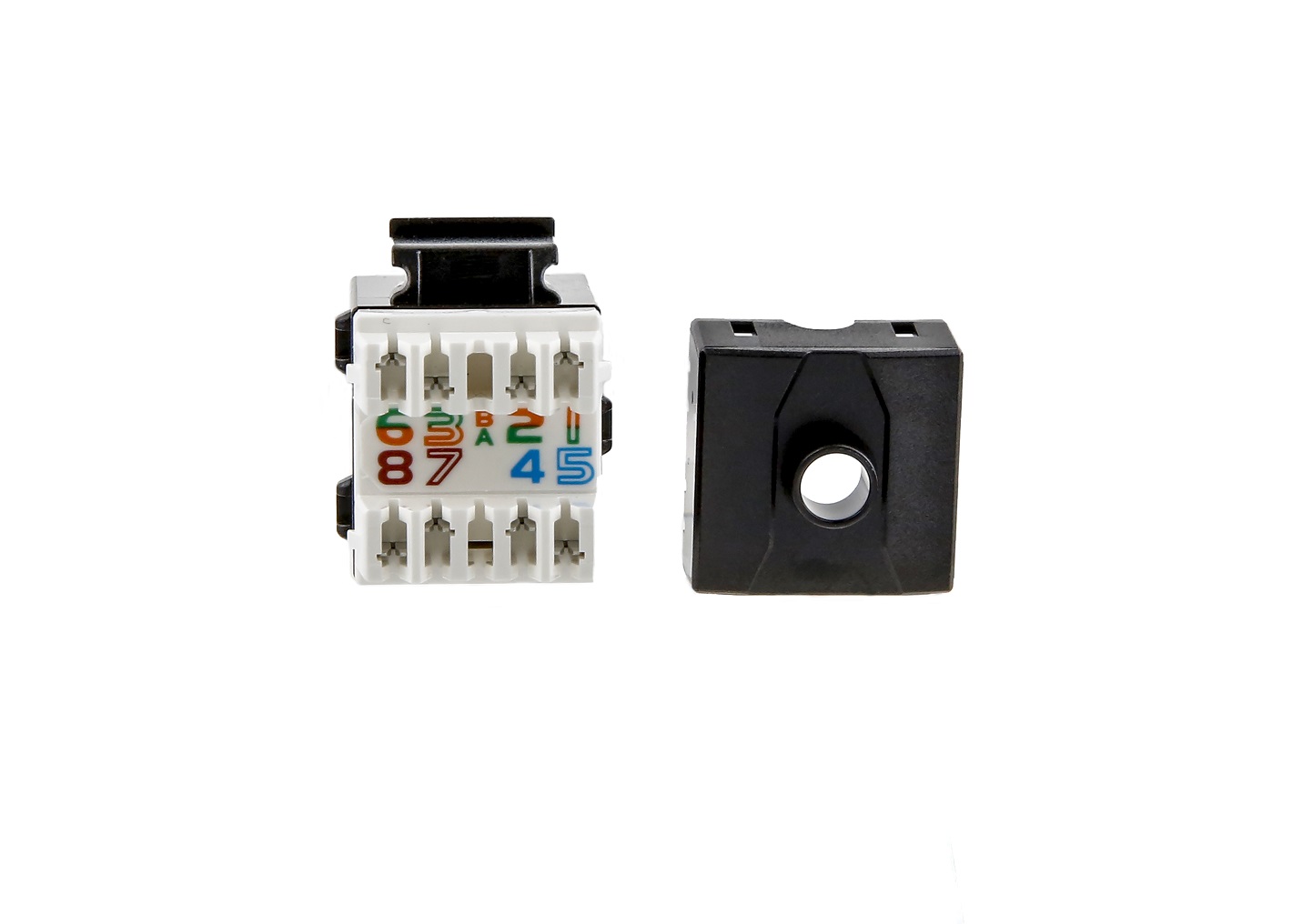

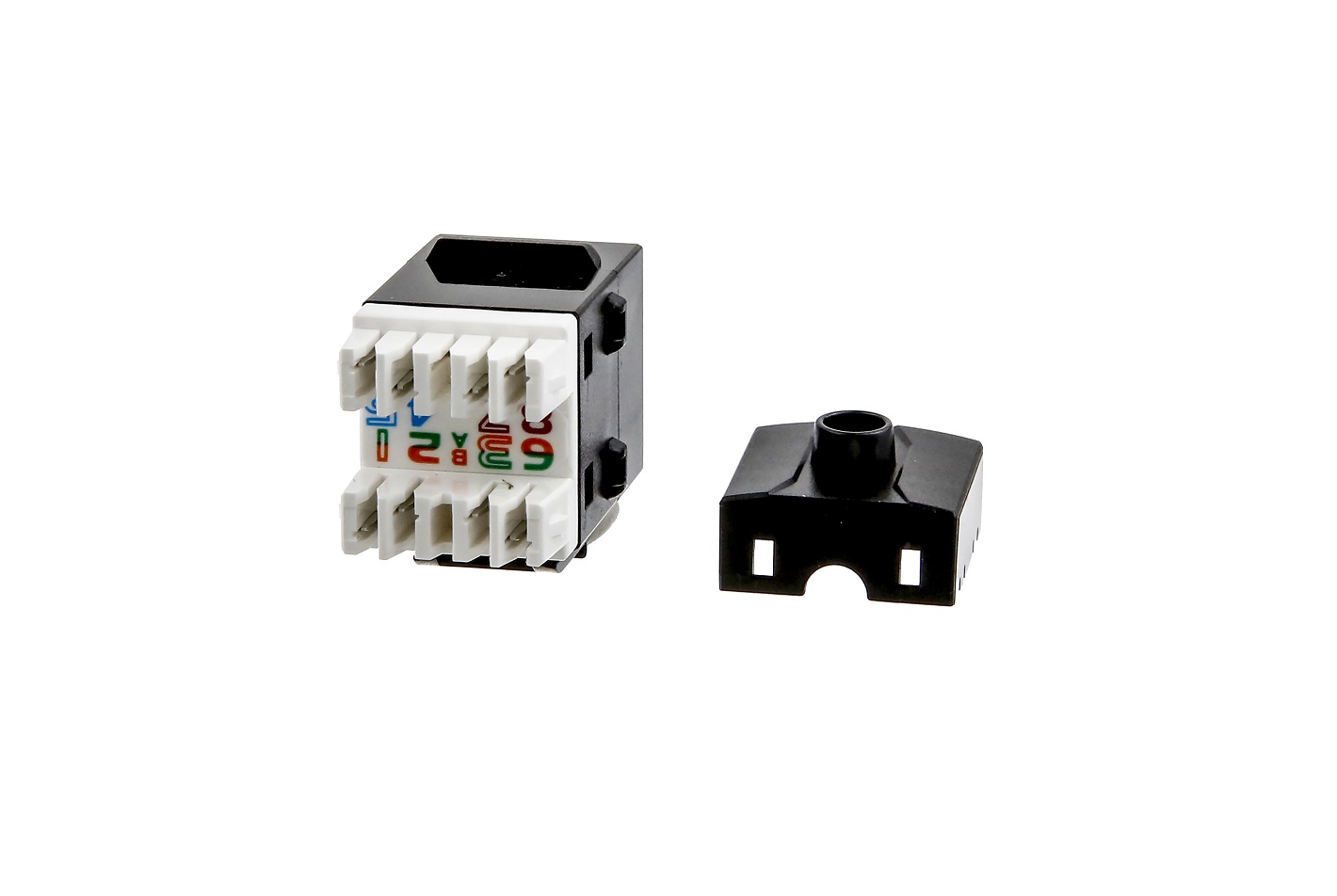

  • 180 Degree 110 type punch down, tool-free, dual function
  • Compatible with T568A and T568B wiring schemes
  • Compatible with 24-port applications in 1U
  • Easily snap in and out of patch panel, and surface boxes or other application
  • UL Certified & RoHS Compliant
  • Black color, wire hole: 4.0mm
  • 10pcs per bag
  • Please contact us for a quote
SKU: PGS-JC6U4-18RT2K1 Categories: ,


Electrical Features

  • Insulation Resistance: 500 MΩ.
  • Dielectric Withstanding Voltage: 1000 V AC.
  • DC Current Rating: 1.5 Amps.
  • DC Resistance: 0.1Ω.
  • Contact Resistance: 20mΩ.
  • Please contact us for a quote
