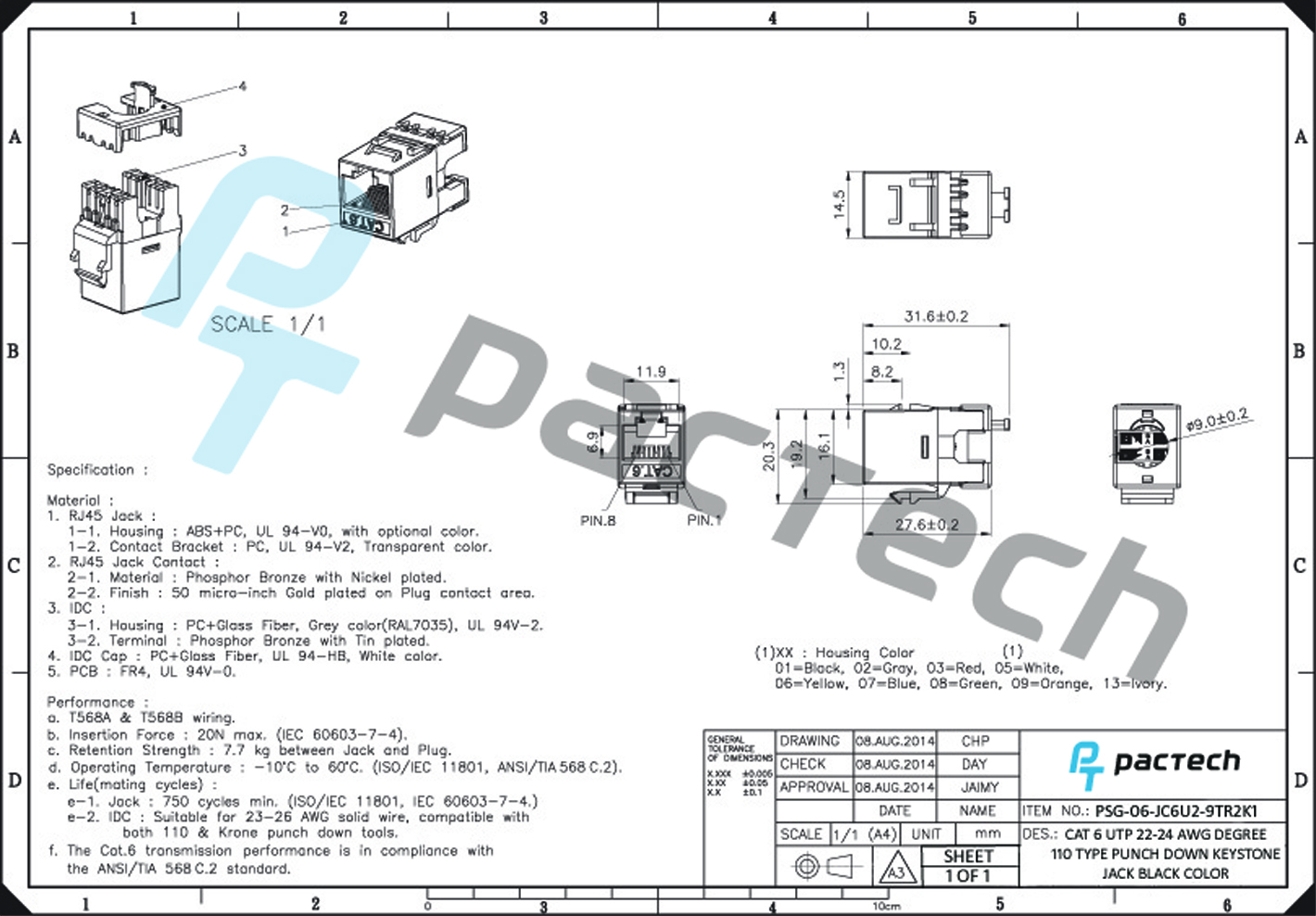

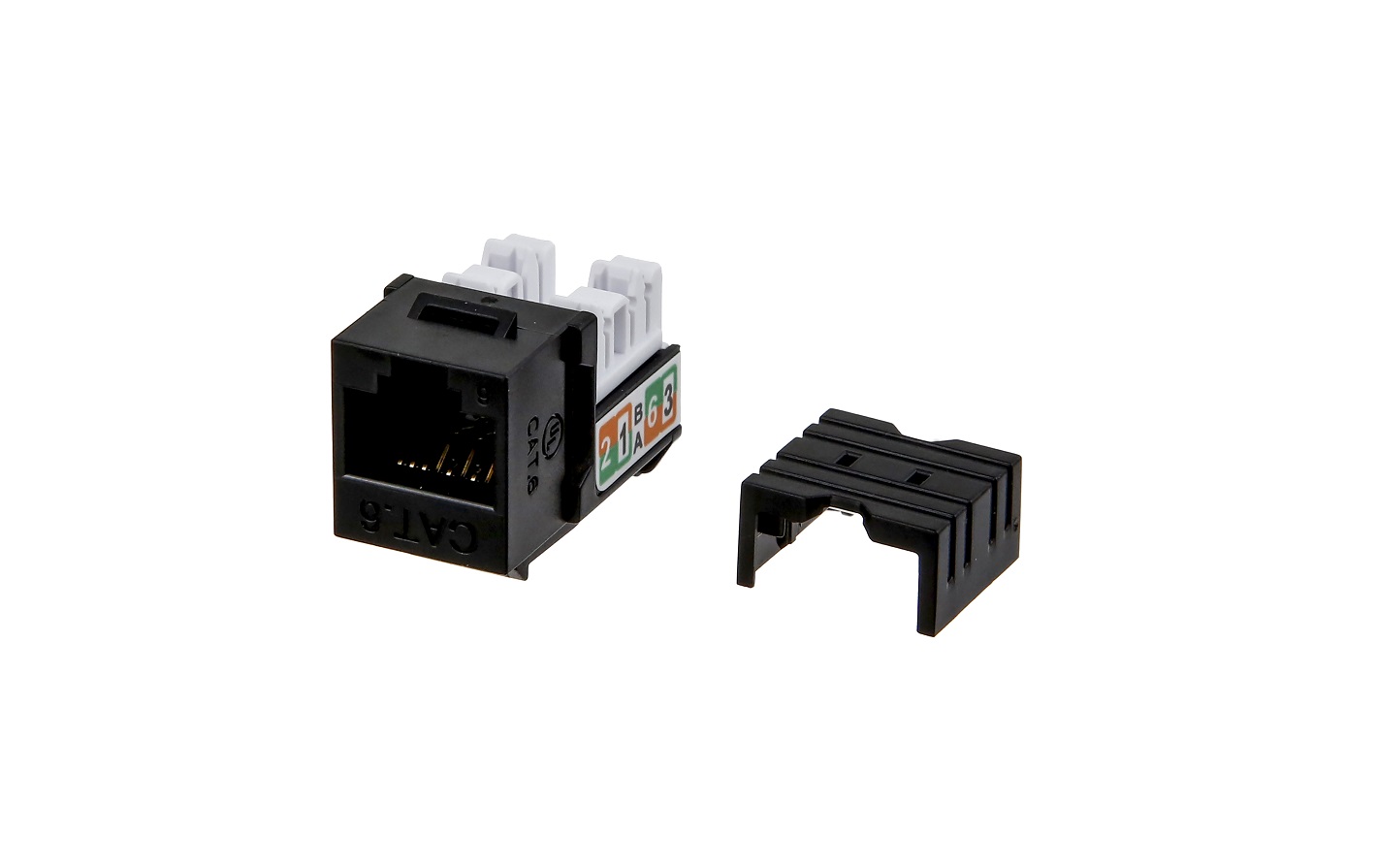

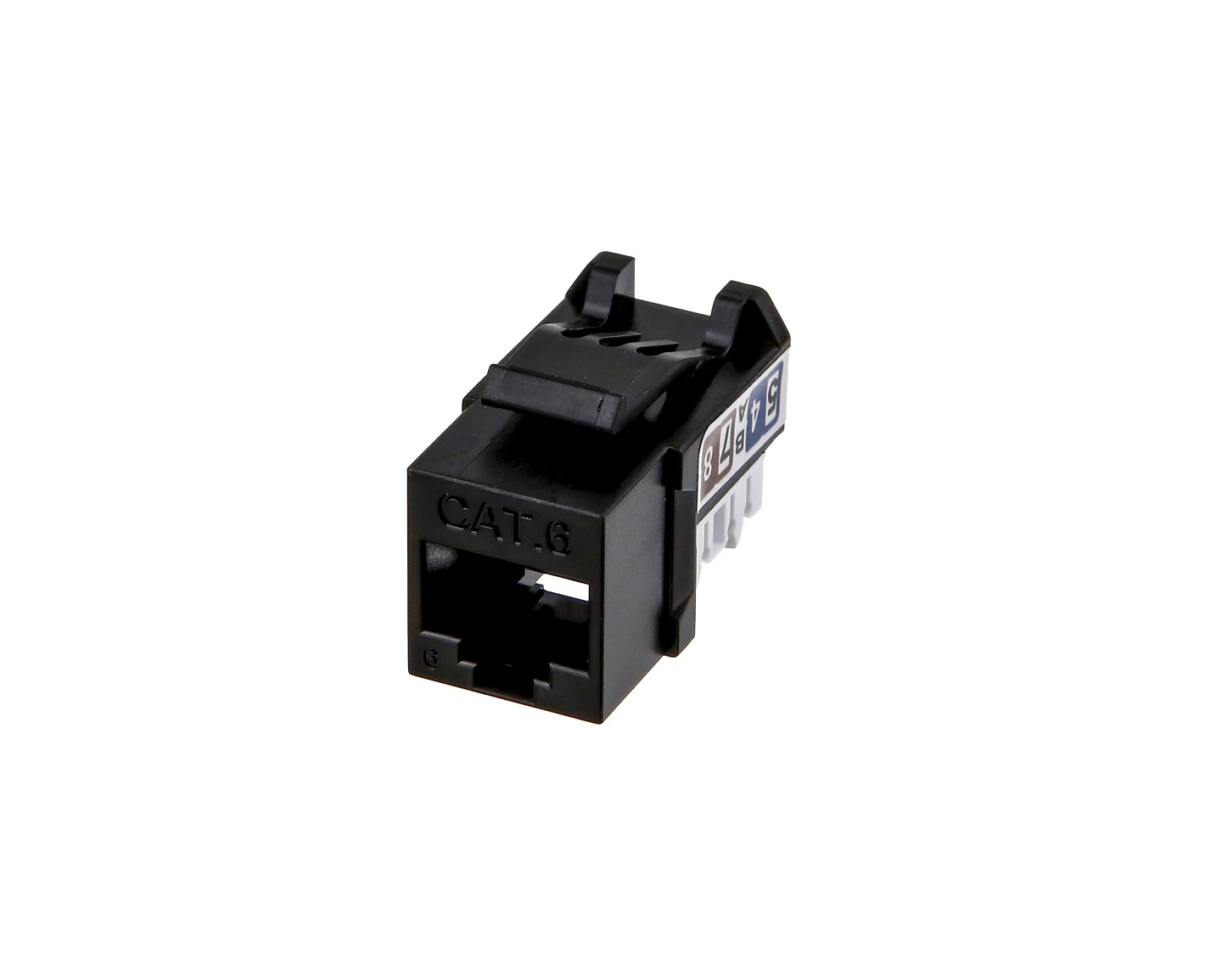

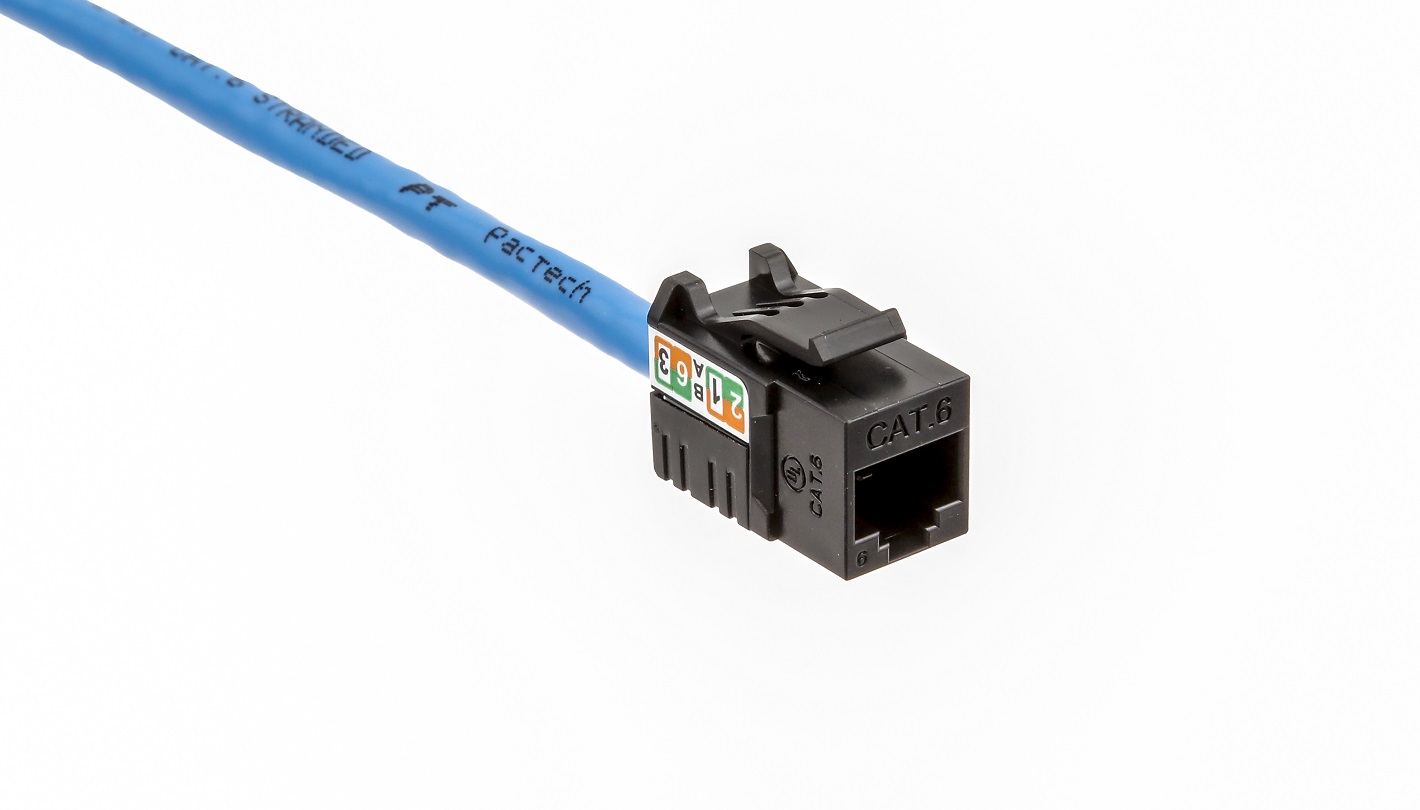

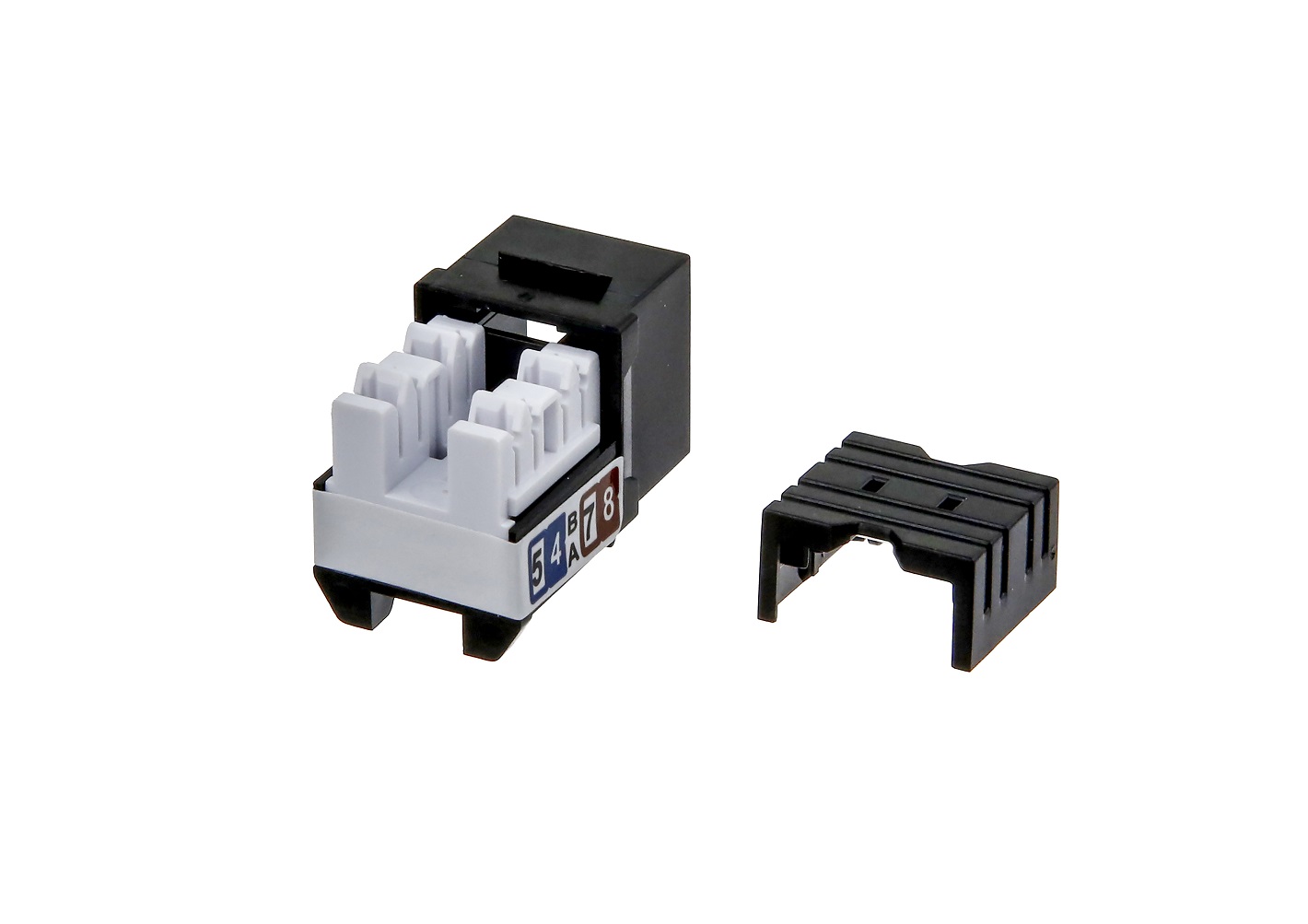

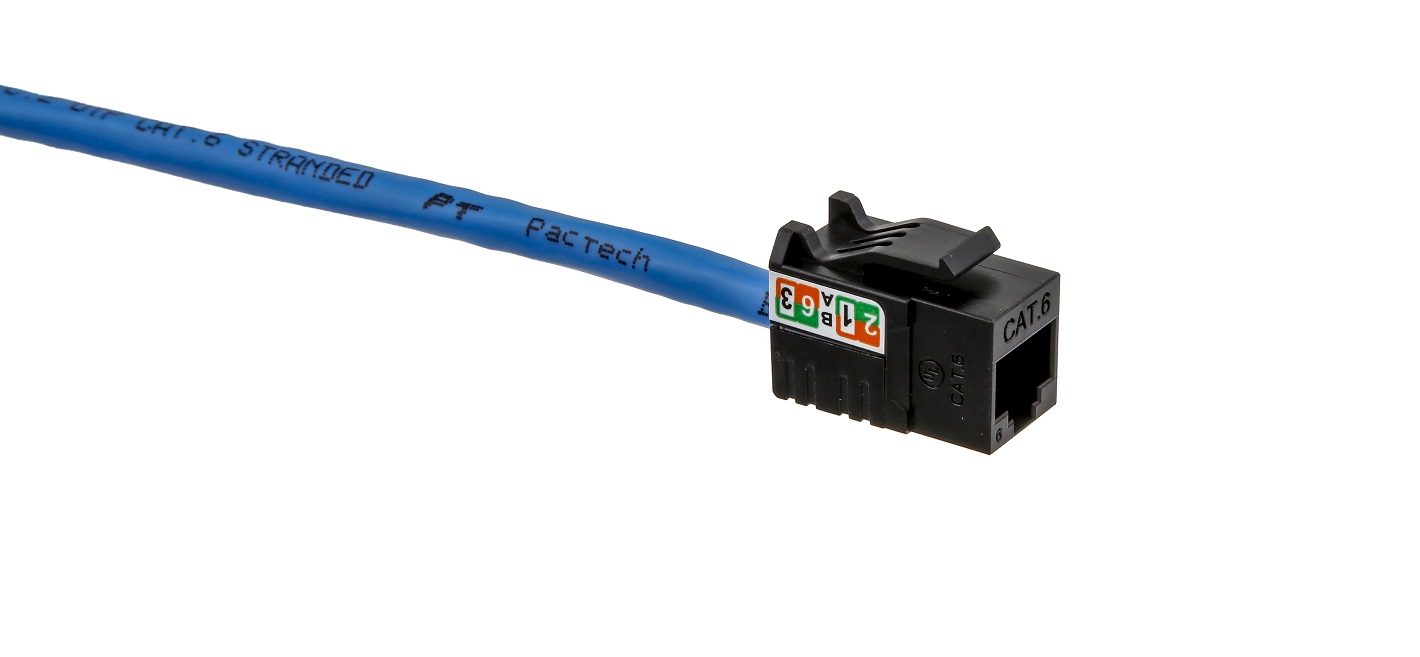

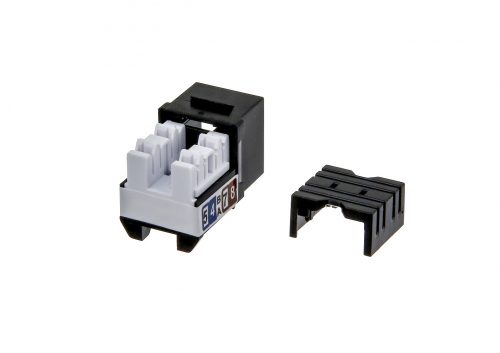

CAT6 UTP 24AWG KeyStone Jack

  • 90 Degree 110/Krone type IDC punch down type
  • Compatible with T568A and T568B wiring schemes
  • Complete automatic production line of PCB assembly to ensure production consistency and provide high quality products
  • Compatible for 24-port applications in 1U
  • Easily snap in and out of patch panel, and surface boxes or other application
  • Easy Installation
  • 10pcs per bag
  • Please contact us for a quote
SKU: PGS-06-JC6U2-9TR2K1 Categories: ,

Description

  • T568A & T568B wiring
  • Insertion Force: 20N max. (IEC 60603-7-4)
  • Retention Strength: 7.7 kg between Jack and Plug
  • Operating Temperature: -10°C to 60°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
  • Life (mating cycles):
    Jack: 750 cycles min (IEC 60603-7-4)
    IDC: Suitable for 23-26AWG solid wires, compatible with both 110 & Krone punch down tools
  • Cat6 transmission performance is in compliance with ANSI/TIA 568C.2 standard
  • Please contact us for a quote
