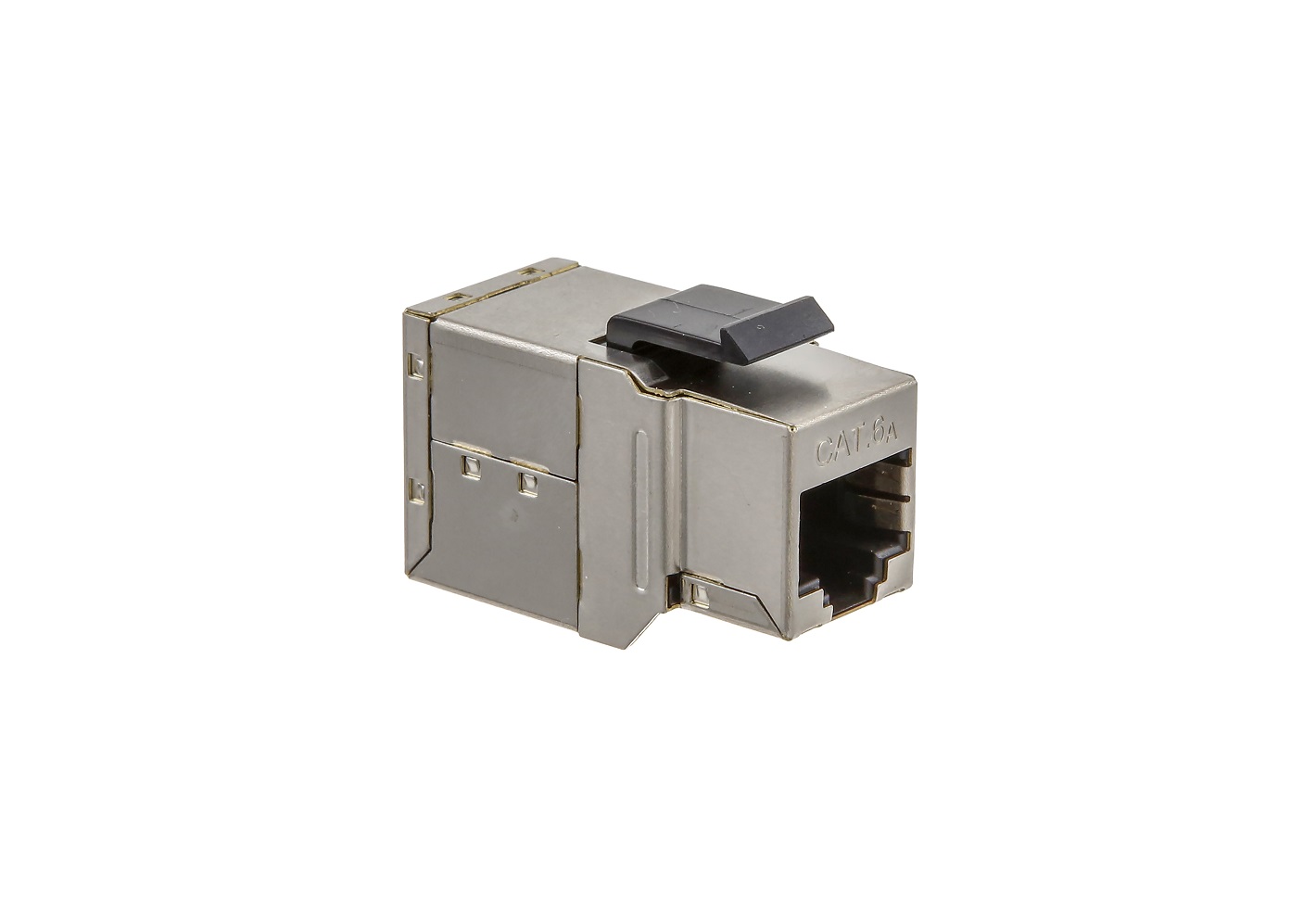

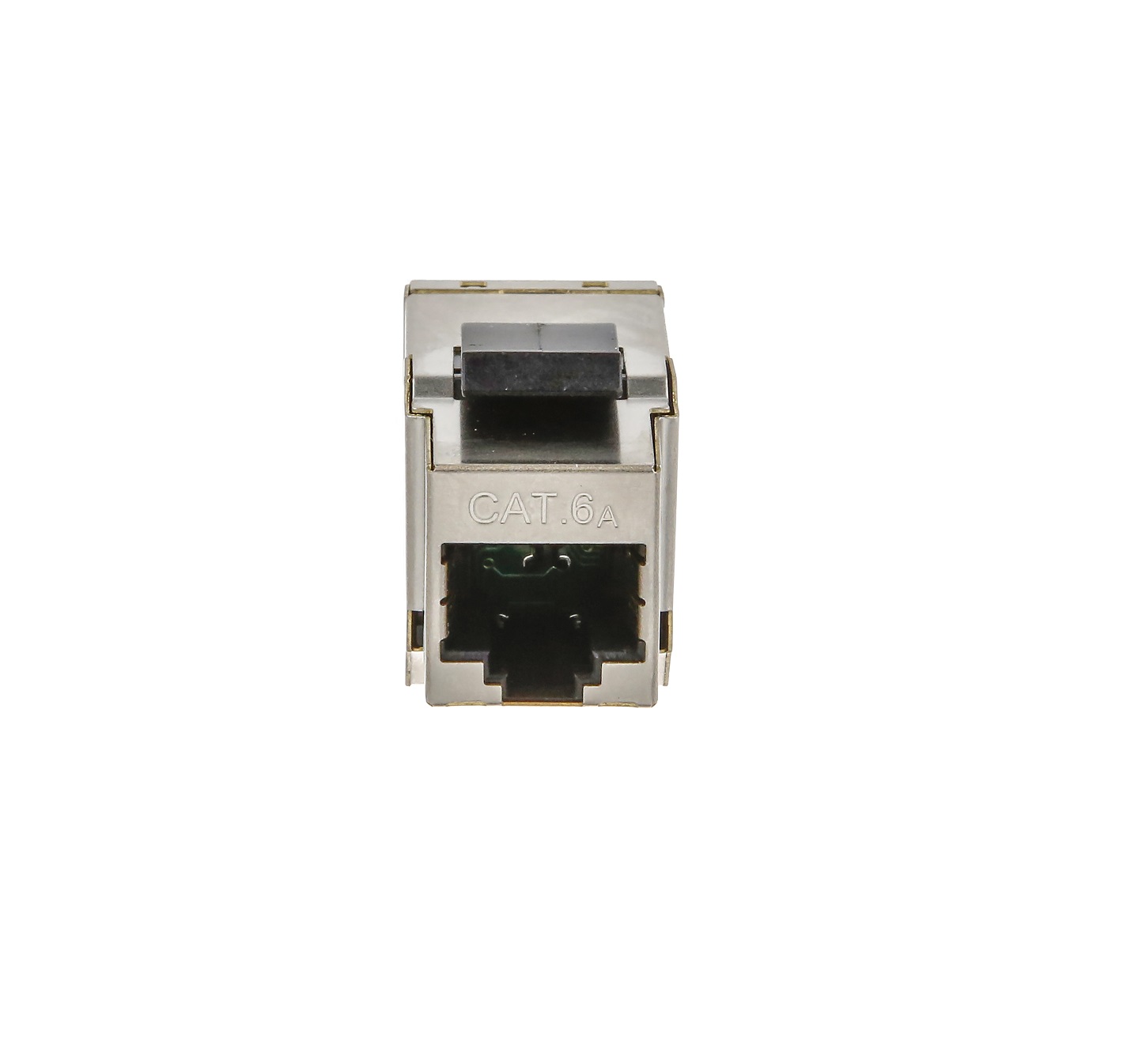

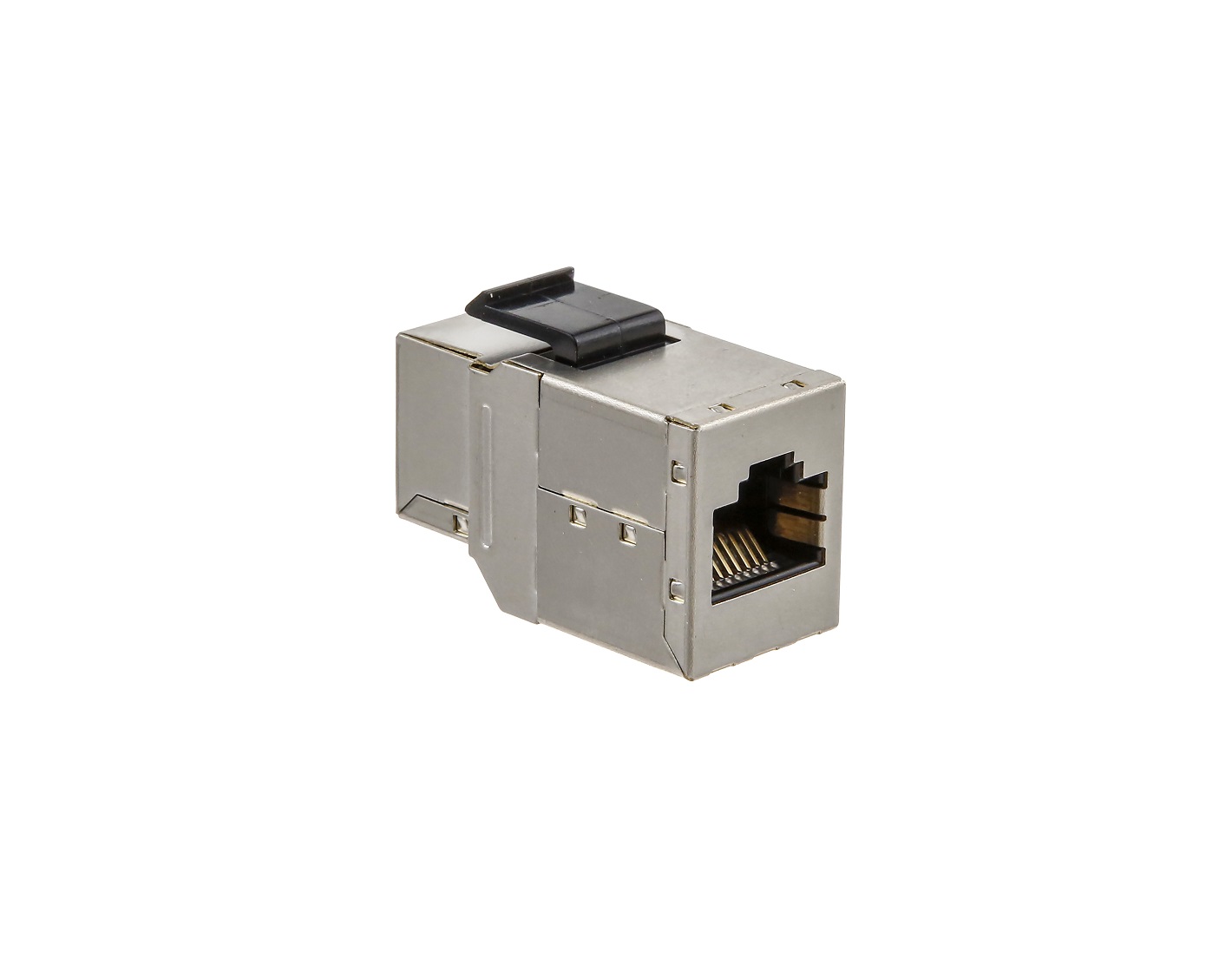

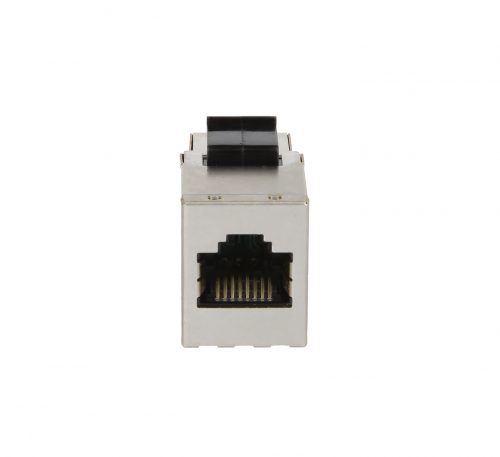

CAT6A STP Inline Coupler Keystone Type
- Compatible with TIA/EIA 568C.2 10G & ISO/IEC 11801 standard
- Compatible for 24-port applications in 1U
- Easily snap in and out of patch panel, and surface boxes or other application
- Easy Installation
- Sliver color, 180 Degree
- 10pcs per bag
- Please contact us for a quote
Description
Performance
- Insertion Force: 30N max. (IEC 60603-7-5)
- Retention Strength: 7.7 kg between Jack and Plug
- Operating Temperature: -10°C to 60°C (ISO/IEC 11801, ANSI/TIA 568 B.2)
- Life (mating cycles):
Jack: 750 cycles min (ISO/IEC 11801, IEC 60603-7-5) - Cat.6A channel transmission performance is in compliance with TIA/EIA 568C.2 10G & ISO/IEC 11801 standard
- Please contact us for a quote
